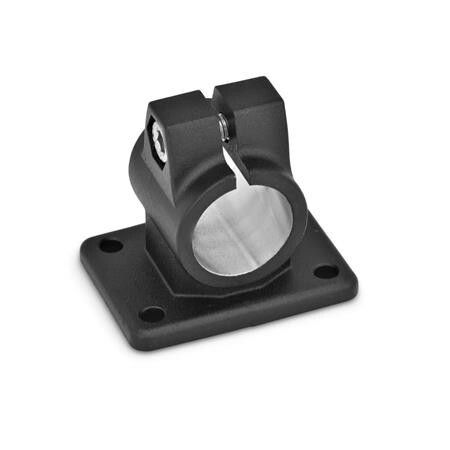

Flange clamp connector
GN 146-B20-40-2-SWAL - Aluminium
Item-no.: 1189341Supplier number: 146-B20-40-2-SWEAN: 4045525054431
Quantity:
1 PiecePackable
Item available in 28 variants:
Price and stock visible after login
Description
The clamping bore of flanged connector clamps GN 146 is mechanically machined and designed for construction tubes GN 990 or DIN 2391, DIN 2395 and DIN 2462. At the screw location z, the socket cap screw reduces the bore cross-section for clamping. For clamping without tools, the socket cap screw can be replaced by an adjustable hand lever GN 911 listed in the table as accessory.
Attributes
Borehole d1
B 20
Clamping length k
40
Code number
2 - with stainless steel socket head cap screw ISO 4762
L1
62
L2
40
Material
AL - Aluminium
RoHS
Ja
Surface
SW - black, RAL 9005, textured matt
Weight
0.194 kg
d2
6.5
m
30
t
7
x1
52
x2
35
y1
70
y2
53
z Bolting points
M8-25
