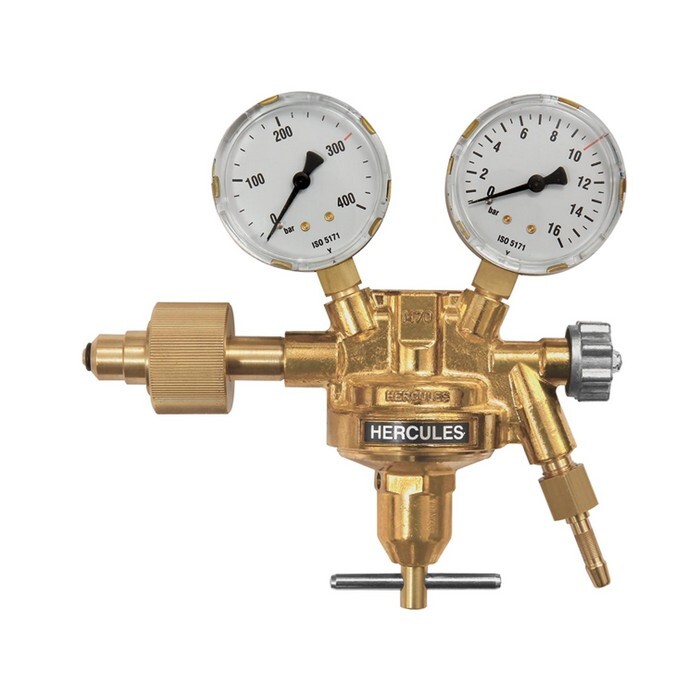

Cylinder pressure regulator
300 bar, 0-10 bar, AN W30x2 left Nozzle D 16.6/19.4, compressed airItem-no.: 1239955Supplier number: 488.38EAN: 4047322205948
Quantity:
1 PiecePackable
Item available in 1 variants:
Price and stock visible after login
Description
Flange pressure controller, Flange pressure 300 bar, for non-flammable gases, Gas type: Compressed air, Working pressure 0-10 bar. Single-stage type of construction acc. to DIN EN ISO 2503, with shut-off valve and safety valve as well as pressure gauges for the cylinder contents and working pressure.
Attributes
Bottle connection
W 30 x 2
Display range
0 - 300/400 bar
Gas type
Compressed air
Housing
Pressed brass
Riegler article number
101285
Working pressure max.
10 bar
Working pressure min.
0 bar
