Wing nut, stainless steel, blue cap
GN 634.1-40-M5-E-DBLPA - plastic
Item-no.: 1483604Supplier number: 634.1-40-M5-E-DBLEAN: 4045525658745
Quantity:
1 PiecePackable
Item available in 6 variants:
Price and stock visible after login
Description
Design and handling of the wing nuts GN 634.1 comply with the requirements and claims of the Ergostyle® product family.
Attributes
Colour cover cap
DBL - blue, RAL 5024, matt
Form
E - with threaded blind hole

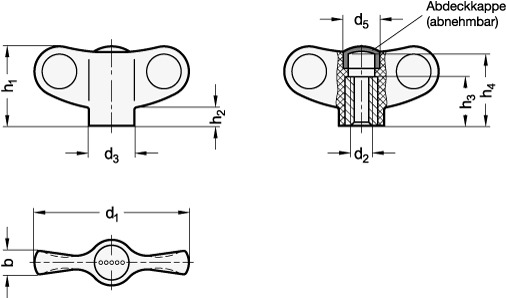

Handle diameter d1
40
RoHS
Ja
Screw thread d2
M 5
b
6
d3
13.5
d5
10
h1
20
h2
4
h3
12
h4
18
