Wing nut, stainless steel, cap Sw grey
GN 634.1-40-M5-E-DSGPA - plastic, polyamide
Item-no.: 1483610Supplier number: 634.1-40-M5-E-DSGEAN: 4045525658806
Quantity:
1 PiecePackable
Item available in 6 variants:
Price and stock visible after login
Description
Design and handling of the wing nuts GN 634.1 comply with the requirements and claims of the Ergostyle® product family.
Attributes
Colour cover cap
DSG - black-grey, RAL 7021, matt
Form
E - with threaded blind hole
Handle diameter d1
40
Material
PA - plastic, polyamide
RoHS
Ja
Screw thread d2
M 5
Weight
0.007 kg

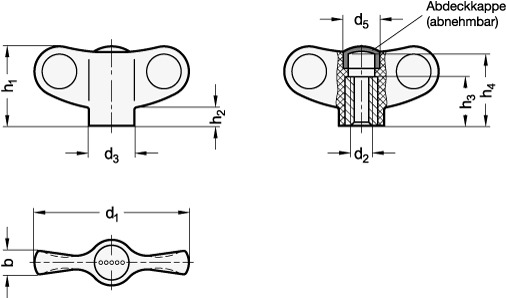

b
6
d3
13.5
d5
10
h1
20
h2
4
h3
12
h4
18
