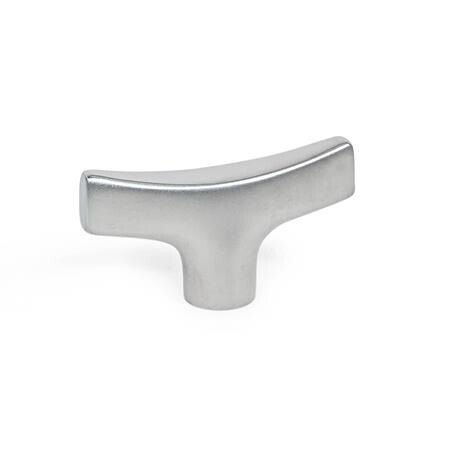

Wing nut
GN 8340-32-M5-MT stainless steelA4 - Stainless steel
Item-no.: 1657615Supplier number: 8340-32-M5-MTcustoms tariff number: 73181639EAN: 4045525846586
Quantity:
1 PiecePackable
Item available in 16 variants:
Price and stock visible after login
Description
Wing nuts GN 8340 clamp and fasten parts easily without tools. The ergonomic shape allows for high tightening forces. The wing nuts can also be used in particularly aggressive environments thanks to the material used.

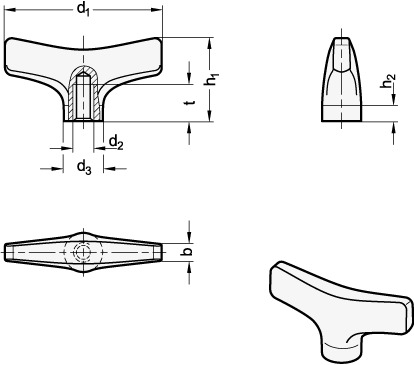

Attributes
Handle diameter d1
32
Material
A4 - Stainless steel
RoHS
Ja
Screw thread d2
M 5
Surface
MT - matt blasted
Weight
0.015 kg
b
4
d3
9
h1
18
h2
3
h2 ≈
3
tmin.
8
