Wing nut, cap green
GN 634-63-M8-E-DGNPA - plastic
Item-no.: 1483577Supplier number: 634-63-M8-E-DGNEAN: 4045525652101
Quantity:
1 PiecePackable
Item available in 7 variants:
Price and stock visible after login
Description
Design and handling of the wing nuts GN 634 comply with the requirements and claims of the Ergostyle® product family.

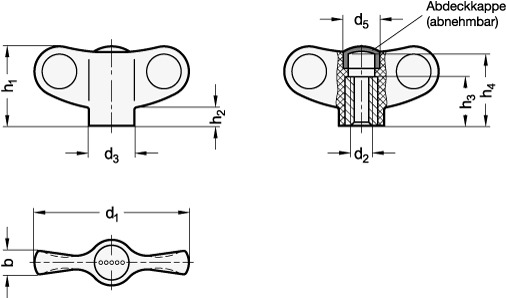

Attributes
Colour cover cap
D GN - green, RAL 6017, matt
Form
E - with threaded blind hole
Handle diameter d1
63
RoHS
Ja
Screw thread d2
M 8
b
9
d3
19
d5
14
h1
32
h2
7.5
h3
20
h4
29
