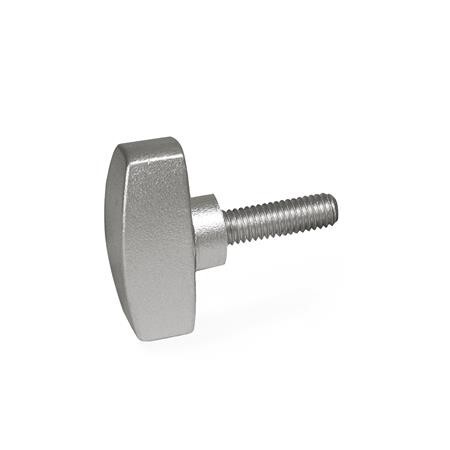

Wing screw
GN 433-A4-26-M4-12-MT Stainless steel A4 mattA4 - Stainless steel investment casting
Item-no.: 1657647Supplier number: 433-A4-26-M4-12-MTEAN: 4045525582484
Quantity:
1 PiecePackable
Item available in 4 variants:
Price and stock visible after login
Description
Wing screws GN 433 clamp and fasten parts easily without tools. The ergonomic shape and the projecting collar make operation easier. The version in stainless steel A4 can be used in especially aggressive environments.
Attributes

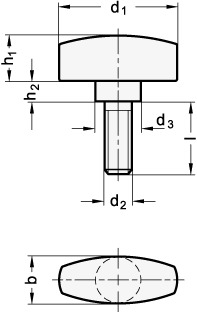

Handle diameter d1
26
Material
A4 - Stainless steel investment casting
Outer diameter
11
RoHS
Ja
Screw thread d2
M 4
Surface
MT - matt blasted
Thread length l
12
Weight
0.022 kg
h1
10
h2
4.5
