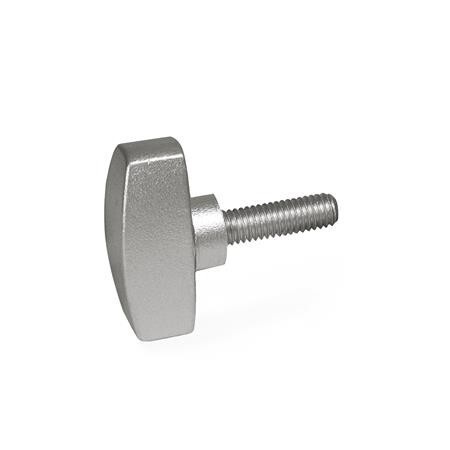

Wing screw
GN 433-NI-26-M6-16-MT Stainless steel matt blastedNI - Stainless steel investment casting
Item-no.: 1202002Supplier number: 433-NI-26-M6-16-MTcustoms tariff number: 73181535EAN: 4045525610521
PU (Packaging): 10 PieceQuantity:
1 PiecePackable
Item available in 34 variants:
Price and stock visible after login
Description
Wing screws GN 433 clamp and fasten parts easily without tools. The ergonomic shape and the projecting collar make operation easier. The version in stainless steel A4 can be used in especially aggressive environments.
Attributes
Handle diameter d1
26
Material
NI - Stainless steel investment casting
Outer diameter
11
RoHS
Ja
Screw thread d2
M 6
Surface
MT - matt blasted
Thread length l
16
Weight
0.024 kg
h1
10
h2
4.5
