Wing screw with cover cap
GN 633-48-M8-40-DBL Elesa, blue capPA - plastic
Item-no.: 1218142Supplier number: 633-48-M8-40-DBLEAN: 4045525927537
PU (Packaging): 10 PieceQuantity:
1 PiecePackable
Item available in 33 variants:
Price and stock visible after login
Description
Design and handling of the wing screws GN 633 comply with the requirements and claims of the Ergostyle® product family.

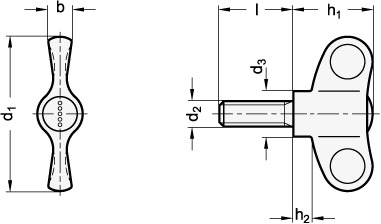

Attributes
Colour cover cap
DBL - blue, RAL 5024, matt
Handle diameter d1
48
RoHS
Ja
Screw thread d2
M 8
Thread length l
40
b
7
d3
13.5
h1
24
h2
5.5
