Joining connection

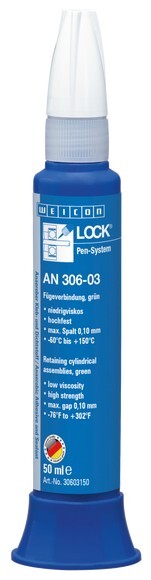

50 ml pen, high strength, low viscosity Weicon AN 306-03Item-no.: 1123105Supplier number: 10017882customs tariff number: 35069900EAN: 4024596020804
PU (Packaging): 12 PieceQuantity:
1 PiecePackable
Item available in 2 variants:
Price and stock visible after login
Description
Lock AN 306-03, Anaerobic glue, High strength, Low viscosity, Screw lock, Temp. -60 °C to 150 °C, 50 ml. Threadlocking for all threads up to M12 as well as reliable retaining of cylindrical assemblies such as bearings, shafts and bushes, hard to disassemble.
Attributes
Breaking torque
25 - 30 Nm
Colour
green
Construction material class|DIN 4102
B2
End hardness|(100 % of strength)
2-4 Hours
Festigkeit
hochfest
For thread connection up to
M 12
Further torque
50 - 60 Nm
Gap bridging up to max.
0,1 mm
Hand strength
10 - 20 Min.
Sales bundle
Plastic bottle
Shear strength Nmm² (DIN 54452)
15 - 18 N/mm²
Temperaturbeständigkeit max.
150 °C
Temperaturbeständigkeit min.
-60 °C
Viscosity
125 nt mPa·s
