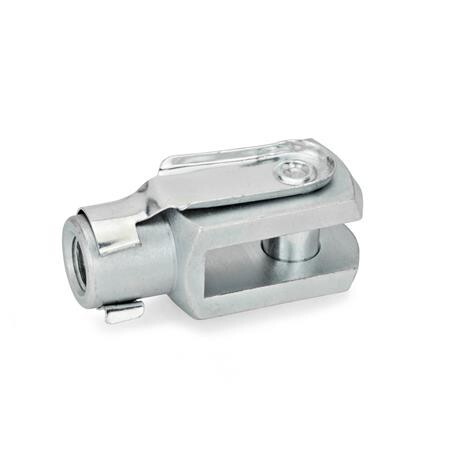

Fork joint
GN 751-4-8-M4-B with snap spring boltST - Steel
Item-no.: 1213192Supplier number: 751-4-8-M4-BEAN: 4045525372368
Quantity:
1 PiecePackable
Item available in 111 variants:
Price and stock visible after login
Description
Fork joints GN 751 consist of a fork head according DIN 71752 and a pin with axial shaft safety (Type KL and SL) or a snap-on spring pin (Type B). Size d1 = 12 is supplied with a fine thread M12x1,5 according to DIN. In practice, however, M12x1,25 is preferred. Standard DIN 71752 does not foresee size d1 = 20.
Attributes
A
8
Borehole d1
4
Form
B - Snap spring bolt
L2
16
Length l1
8
Material
ST - Steel
RoHS
Ja
Screw thread d2
M 4
Weight
0.007 kg
b
4
d3
8
l3
21
l4
6
x12
24
x13
29
