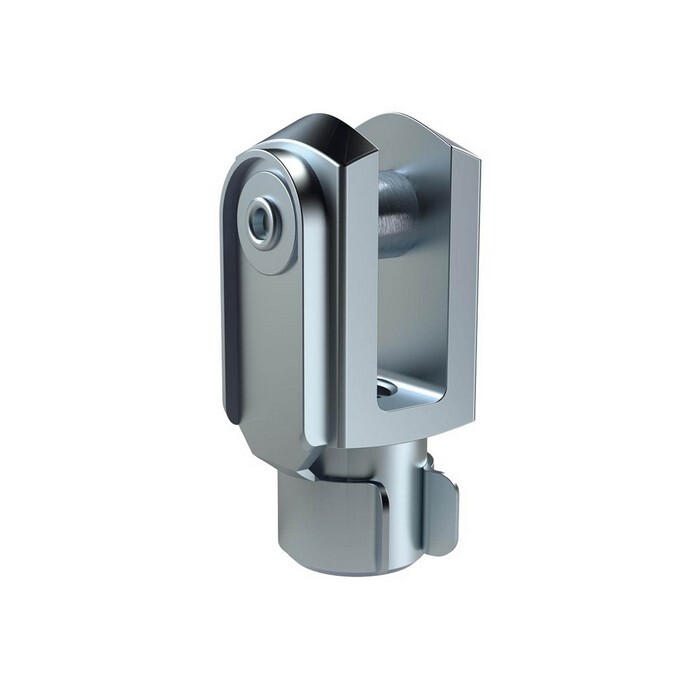

Gabelkopf Typ AP2
Bohrung 16 Kolbenstangengewinde M16 x 15 mit FederklappbolzenItem-no.: 1733117Supplier number: GAKAP2M16X15EAN: 4047322678476
Quantity:
1 PiecePackable
Price and stock visible after login
Description
Rod clevis AP2 ISO 8140, bore 16, for cylinders with piston rod thread M16x1.5, with hinged spring pin .
Attributes
For cylinder
Round cylinder (not ISO 6432) / ISO 21287 / ISO 15552
Piston rod thread
M16x1,5
Suitable for piston Ø
50 / 80-100 / 50-63 mm
Version
with spring hinge pin
