Hinge clamp connector
GN 285-B12-B14-2-SWAL - Aluminium
Item-no.: 1344603Supplier number: 285-B12-B14-2-SWcustoms tariff number: 76090000EAN: 4045525691001
Quantity:
1 PiecePackable
Item available in 2 variants:
Price and stock visible after login
Description

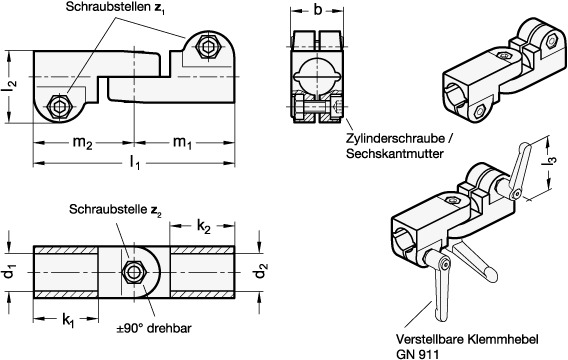

Swivel clamp connector joints GN 285 are an assembly of two swivel clamp connectors GN 275. The clamping bores are mechanically machined and designed for construction tubes GN 990 or DIN 2391, DIN 2395 and DIN 2462. At the screw locations z1, the socket cap screws reduce the bore cross-section for clamping. For clamping without tools, the socket cap screws can be replaced by the adjustable hand levers GN 911 listed in the table as accessory.
Attributes
Borehole d1
B 12
Borehole d2
B 14
Code number
2 – with 3 stainless steel cylinder screws ISO 4762
For z2l3
45 | 63
L1
97
L2
34.5
Material
AL - Aluminium
Recommended accessories clamping lever GN 911 for z1l3
63
RoHS
Ja
Surface
SW - black, RAL 9005, textured matt
Weight
0.146 kg
b Laschenbreite
25
k1
31.5
k2
31.5
m1
48.5
m2
48.5
z1 Screw points
M6-20
z2 Screw point
M6-20
z2 Screw points
M6-20
