Hinge clamp connector
GN 490-8-8-A-MT twistable, mattAL - Aluminium
Item-no.: 1217927Supplier number: 490-8-8-A-MTEAN: 4045525861138
Quantity:
1 PiecePackable
Item available in 32 variants:
Price and stock visible after login
Description
Swivel clamp connector joints GN 490 clamp the rods or tubes via a prism, allowing a greater Ø tolerance to be bridged. The compression spring makes clamping and releasing easier.

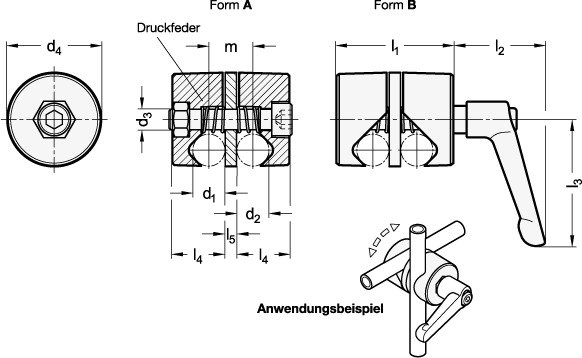

Attributes
Clamping diameter d1
8
Clamping diameter d2
8
Diameter d4
28
Form
A - with socket head cap screw DIN 912
L1
33
L2
35
Material
AL - Aluminium
RoHS
Ja
Surface
MT - matt, vibratory ground
Weight
0.051 kg
d3
M 6
l3
45
l4
14
l5
5
m
13
