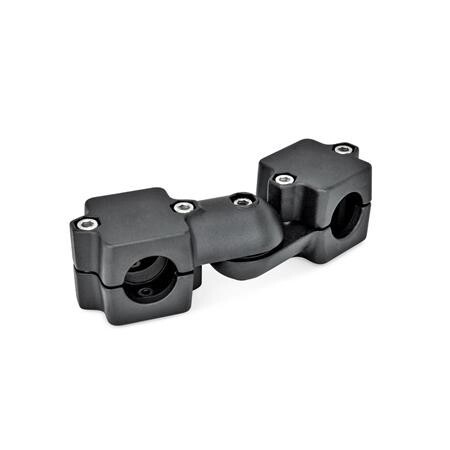

Hinge clamp connector, two-piece

Swivel clamp connector joints GN 289 are an assembly of two swivel clamp connetors GN 279. The square versions are also suitable for use with profile systems. The clamping bores are not machined and are designed for construction tubes GN 990 or DIN 2391, DIN 2395 and DIN 2462. At the screw locations z1, the socket cap screws reduce the cross-section for clamping. For clamping without tools, the socket cap screws can be replaced by the adjustable hand levers GN 911 listed in the table as accessory.
