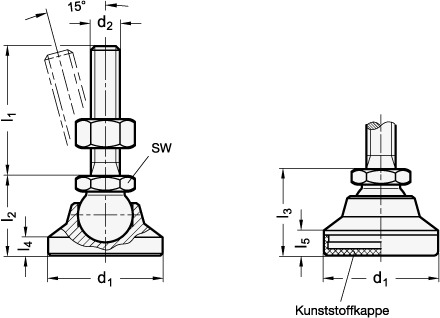

Articulated foot with screw

The static load of the leveling feet GN 343.2 is limited by the load capacity of the ball joint / threaded stud (property class 5.8). The static load values in the table refer to a net vertical load in relation to the leveling foot. Under normal operating conditions side loading or angular loading is not uncommon and the load capacity would be considerably reduced which must be taken into consideration. Leveling feet of type KSE / KRE have conductive plastic caps that prevent the build-up of electrostatic charges. The ESD conformity has been tested and confirmed as per DIN EN 61340-5-1 / DIN EN 61340-5-3. The leveling feet GN 343.2 cannot be disassembled.
