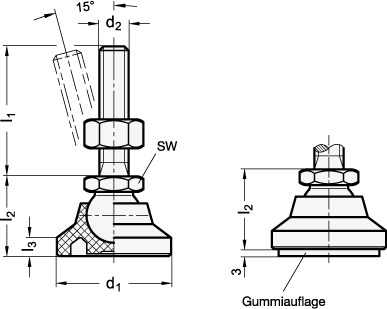

Articulated foot without rubber pad

Leveling feet GN 343.4 are capable of withstanding high static loads through the use of a high density plastic material coupled with a design which distributes the load over a larger area. Exceeding the static values specified in the table could lead to failure of the plastic component. The above values have been arrived at by a series of load tests whereby a defined number of leveling feet were subjected to a vertical load over a defined period. Under normal operating conditions side loading or angular loading is not uncommon and the load capacity would be considerably reduced which must be taken into consideration. Leveling feet GN 343.4 are supplied assembled, but are removable.
