Gelenkfuß ohne Mutter, ohne Gummiauflage

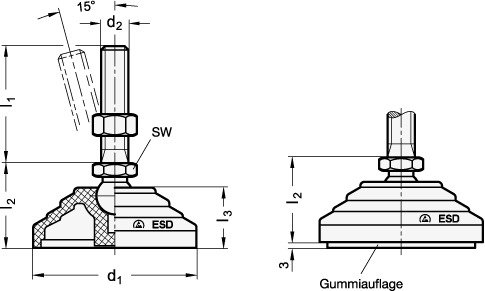

Leveling feet GN 344.2 feature a conductive ESD plastic material (PA) or rubber (NBR) which prevents static charges from building up. The imprint ESD-C on the surface of the leveling feet indicates the special antistatic properties according to ICE 61340-5-1. These leveling feet have a high load-bearing capacity which is achieved by the use of a very high grade plastic material. In addition, their stepped base also helps to spread the load over a wider area. The values given in the table regarding the static load capacity serve as a guide line only and if these are exceeded serious permanent deformation or breakage of the plastic foot could occur. The values were arrived at by a series of tests whereby a limited number of leveling feet were subjected for a limited time to a vertical static load to the feet. The listed load capacities are non-binding guide values, the manufacturer accepts no liability for their performance. In general, they do not constitute a warranty of condition. The user must determine from case to case whether a product is suitable for the intended use. Leveling feet GN 344.2 are delivered assembled, but can also be disassembled.
