Rod end can be relubricated

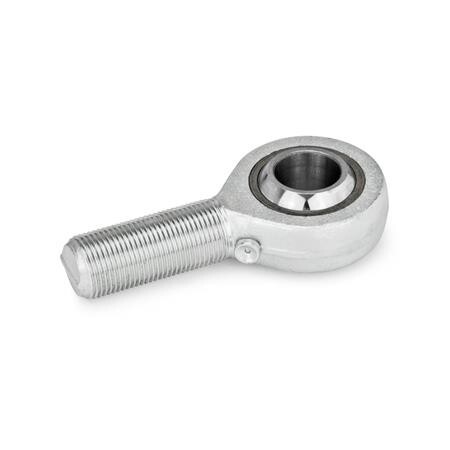

GN 648.2-10-M10-N AG rightST - Stahl
Item-no.: 1210577Supplier number: 648.2-10-M10-Ncustoms tariff number: 84833038EAN: 4045525459540
Quantity:
1 PiecePackable
Price and stock visible after login
Description

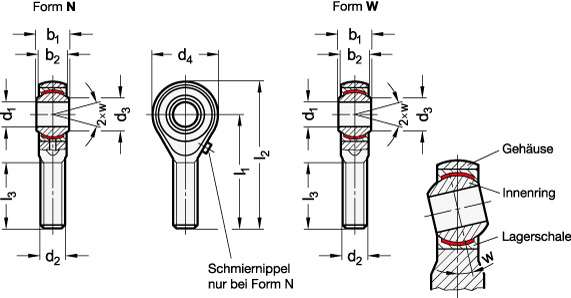

Ball joint heads GN 648.2 are similar to DIN ISO 12240-4, series K (formerly DIN 648 K).
Attributes
Borehole d1
10
Form
N - Brass / steel regreasable
L1
48
L2
62
Material
ST - Steel
RoHS
Ja
Screw thread d2
M 10
Weight
0.060 kg
b1
14
b2
10.5
d3
12.9
d4
28
l3
29
w Kippwinkel
13°
