Spherical plain bearing maintenance-free
GN 648.9-5-13-WK stainless steelNI - Stainless steel
Item-no.: 1218197Supplier number: 648.9-5-13-WKEAN: 4045525903128
Quantity:
1 PiecePackable
Item available in 12 variants:
Price and stock visible after login
Description

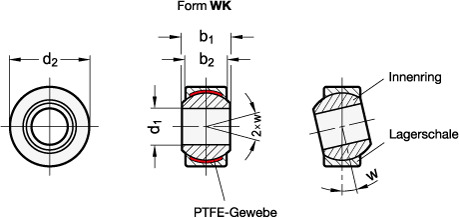

Ball joints GN 648.9 are similar to DIN ISO 12240-1, series K. In deviation from the official standard sheet, the ball joints of size d1=14 are delivered with an outer diameter of d2=28 (in place of d2=29). These ball joints are integrated in the ball joint heads GN 648.5 and GN 648.6.
Attributes
Borehole d1
5
Form
WK - Stainless steel-PTFE / stainless steel maintenance-free
Material
NI - Stainless steel
Outer diameter d2
13
RoHS
Ja
Weight
0.005 kg
b1
8
b2
6
w Kippwinkel
13°
