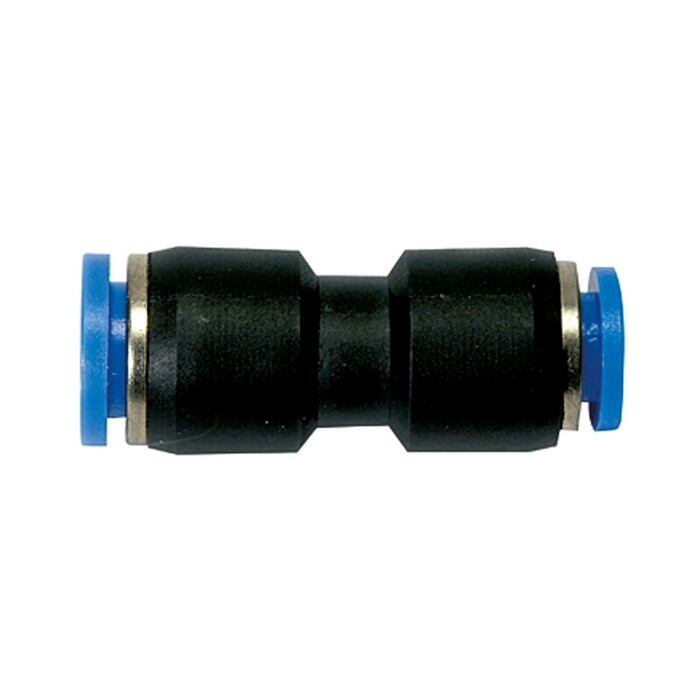

Straight reducer connector
SD6/4, L 31.3 mm Blue series, KU- nickel-plated brassItem-no.: 1114040Supplier number: 136.0604customs tariff number: 39174000EAN: 4047322026178
PU (PU NW): 10 PiecePU (Packaging): 10 PieceQuantity:
1 PiecePackable
Item available in 8 variants:
Price and stock visible after login
Description
Straight push-in connector »Blue Series«, reducing, for hose exterior Ø 6/4 mm, pmax short term 15bar. Push-in fittings series manufactured in plastic and nickel-plated brass. All parts are suitable for use with hoses, tubes or pipes made of plastic.
Attributes
Arbeitsdruck max. kurzzeitig
15 bar
L1
31,0 mm
Loosening ring
Plastic
Material
Plastic or nickel-plated brass
Medium
Compressed air
Sealing material
NBR
Temperature range
-20 to +80 °C
Temperature range max.
80 °C
Temperature range min.
-20 °C
Working pressure max.
10 bar
Working pressure min.
-0,95 bar
für Schlauch-Außen-Ø1
6 mm
für Schlauch-Außen-Ø2
4 mm
