Device crank
GN 670.2-71-B10-SW Elesa 232451-C1PA - Kunststoff
PA - plastic
Item-no.: 1351903Supplier number: 670.2-71-B10-SWcustoms tariff number: 84879090EAN: 4045525107403
Quantity:
1 PiecePackable
Price and stock visible after login
Description
The design of the cranked handles GN 670.2 matches the product family Ergostyle®. Attaching the cranked handle on a shaft using a transverse pin or a set screw is made easier with the semilateral cross bore. The finger recesses of the rotating cylinder head allows a safe grip and the ergonomic operation of the relatively small cranked handle.

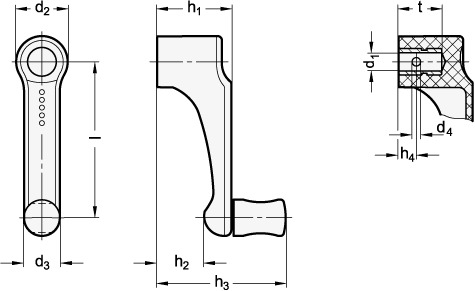

Attributes
Borehole d1
B 10
Borehole filtercolumn
10
Colour
SW - black, RAL 9005, matt
Length l
71
Material
PA - plastic, polyamide
RoHS
Ja
Weight
0.020 kg
d2
23
d3
16
d4
4
h1
30
h2
18
h3
53
h4
9
t
25
Ø Cylinder knob
14.5
Ø Zylinderknopf
14.5
