Device crank with cross groove

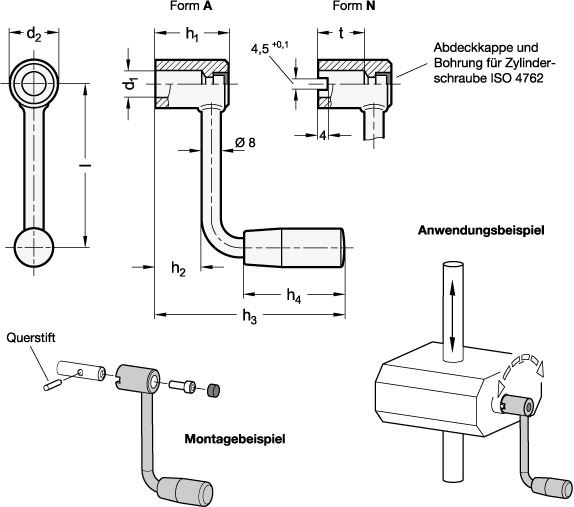

Stainless steel cranks GN 369.5 feature a compact design and are used for light drive and positioning tasks. Thanks to the material used, the cranks are also suitable for more aggressive environments. The slot of type N easily transfers the rotary movement to the shaft by means of a transverse pin mounted in the shaft. The crank can be connected removably or permanently fastened axially with a socket head cap screw DIN 912. Type A can be ordered with transverse holes for GN 110. Thanks to a simple manufacturing process, it is relatively easy and inexpensive to produce these cranks as special designs.
