Gewindedichtung

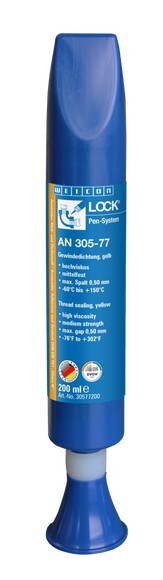

200 ml Pen, mittelfest, hochviskos Weicon AN 305-77, DVGW-BAM-ZulassungItem-no.: 1123207Supplier number: 10020011EAN: 4024596017477
PU (Packaging): 8 PieceQuantity:
1 PiecePackable

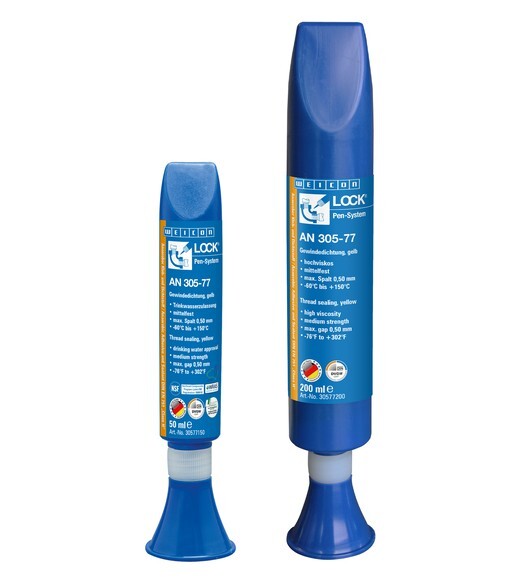

Item available in 3 variants:
Price and stock visible after login
Description
· high viscosity · medium strength · disassembly with normal tools
Attributes
Breaking torque
18 - 22 Nm
Colour
yellow
Construction material class|DIN 4102
B2
End hardness|(100 % of strength)
1-3 Hours
For thread connection up to
M 80 R 3\
Further torque
10 - 14 Nm
Gap bridging up to max.
0,5 mm
Hand strength
15 - 30 Min.
Sales bundle
Tube
Shear strength Nmm² (DIN 54452)
6 - 13 N/mm²
Temperature resistance
-60°C to +150°C
Viscosity
24.000 - 70.000 ht mPa·s
