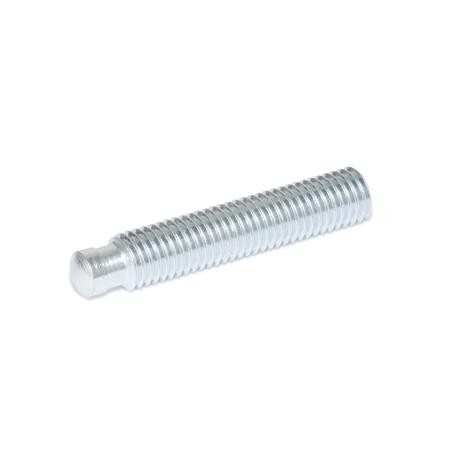

Grub screw
DIN 6332-M10-45-SKN-ZB Pressure pin unhardened, galvanisedST - Steel
Item-no.: 1351569Supplier number: 6332-M10-45-SKN-ZBEAN: 4045525085671
Quantity:
1 PiecePackable
Item available in 13 variants:
Price and stock visible after login
Description
The thrust point of the grub screws DIN 6332 is designed to be used with or without the thrust pad for clamping. The pin diameter of the grub screws is smaller than the core diameter of the thread, allowing them to be screwed in on the pin side. The snap ring resp. snap spring of the thrust pad is a simple and quick method to connect the thrust pad to the grub screw.
Attributes
Form
SKN - with pressure pin, unhardened
Length l
45
Material
ST - Steel
RoHS
Ja
SW
5
Screw thread d1
M 10
Surface
ZB - galvanised, blue passivated
Weight
0.020 kg
d2
8
d3
7.2
e1
3.6
z1
9
z2
4.5
