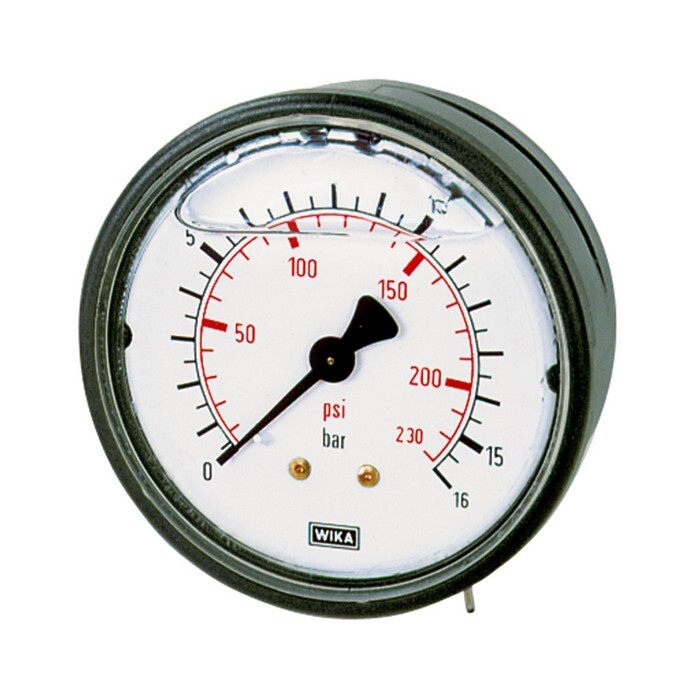

Glycerine manometer
AG 1/4", D63 mm, 0-16 bar, max 60°C Plastic, rear connectionItem-no.: 1240127Supplier number: 808-KEAN: 4047322119108
Quantity:
1 PiecePackable
Item available in 20 variants:
Price and stock visible after login
Description
Glycerine pressure gauge, plastic housing, Connection, rear, centric, G 1/4, Goods class 2.5, Measurement range 0-16 bar, Ø 63. Glycerine-filled bourdon-tube pressure gauge. For measurements in areas with high, dynamic pressure loads and vibration levels. Suitable for gaseous or liquid media which do not corrode copper alloy, do not have high viscosity and do not crystallise.
Attributes
Ambient temperature max.
60 °C
Ambient temperature min.
-20 °C
Connection
G 1/4
Connection position
Rear, centric
Diameter
63 mm
Housing
Plastic, black (with front flange)
Lower / upper measuring range limit
Overpressure
Material process connection
Copper alloy
Measuring element
Copper alloy
Measuring range max. bar
16
Measuring range max. psi
230
Measuring range min. bar
0
Measuring range min. psi
0
Medium temperature max.
60 °C
Medium temperature min.
-20 °C
Pointer movement
Copper alloy
Quality class
2,5
Riegler article number
102100
Scale graduation in the bar range
0,5 bar
Screw thread
G 1/4 AG
Type
113.13
Viewing window
Plastic
