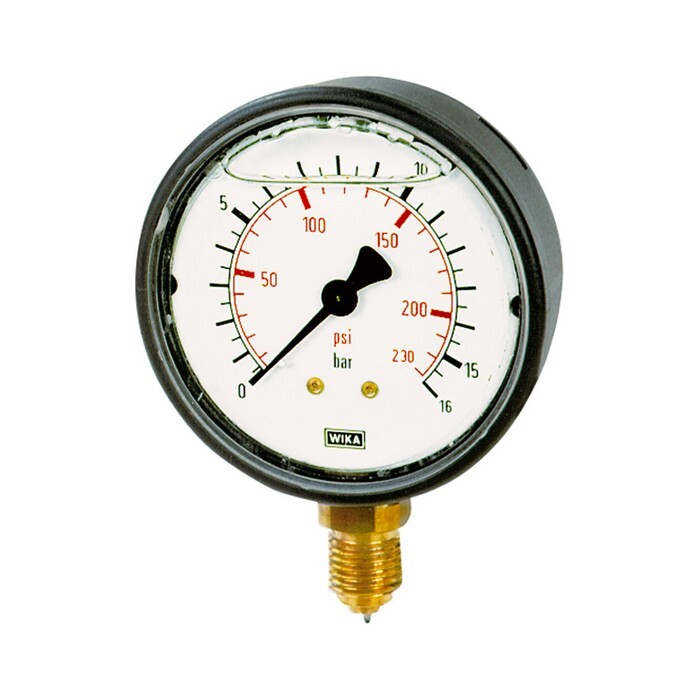

Glycerine manometer
AG 1/4", D63 mm, 0-16 bar, max 60°C Plastic, bottom connectionItem-no.: 1235124Supplier number: 708-KEAN: 4047322113915
Quantity:
1 PiecePackable
Item available in 20 variants:
Price and stock visible after login
Description
Glycerine pressure gauge, plastic housing, Connection radial bottom, G 1/4, Goods class 2.5, Measurement range 0 - 16 bar, Ø 63. Glycerine-filled bourdon-tube pressure gauge. For measurements in areas with high, dynamic pressure loads and vibration levels. Suitable for gaseous or liquid media which do not corrode copper alloy, do not have high viscosity and do not crystallise.
Attributes
Ambient temperature max.
60 °C
Ambient temperature min.
-20 °C
Connection
G 1/4
Connection position
Radial bottom
Diameter
63 mm
Gewinde
G 1/4 AG
Housing
Plastic, black (with front flange)
Lower / upper measuring range limit
Overpressure
Material process connection
Copper alloy
Measuring element
Copper alloy
Measuring range max. bar
16
Measuring range max. psi
230
Measuring range min. bar
0
Measuring range min. psi
0
Medium temperature max.
60 °C
Mediumstemperatur min.
-20 °C
Pointer movement
Copper alloy
Quality class
2.5
Riegler article number
102080
Scale graduation in the bar range
0,5 bar
Type
113.13
Viewing window
PMMA, welded to housing
