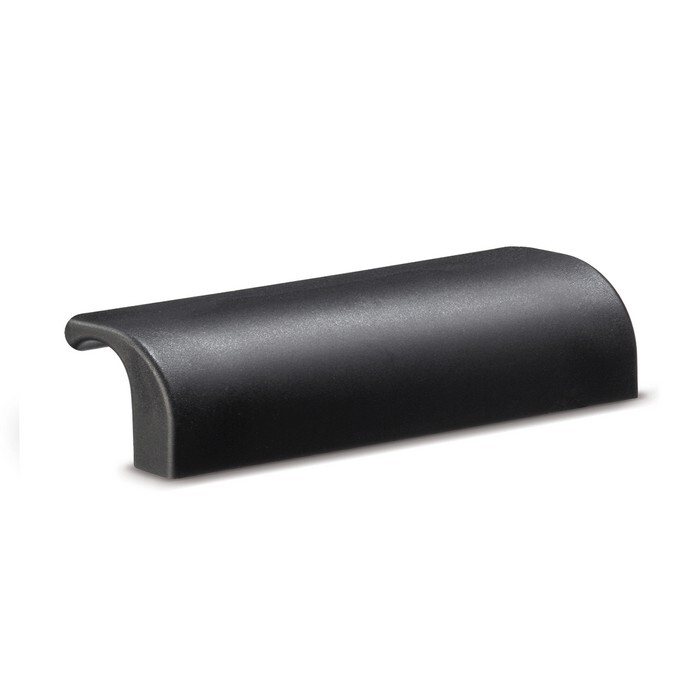

Plastic handle moulding

Ledge handles GN 130 with bore hole B 4,5 are intended for fixing with self-tapping screws of thread size ST 4,8 such as pan head self-tapping screws DIN ISO 7049. The forces F1 and F2 given in the table are failure loads, which means that the appropriate safety factor must be taken into account. No liability is otherwise accepted for the reference values given. They do not constitute a warranty of quality. The user must determine from case to case whether the handle strip is suitable for the intented purpose. Ambient factors and ageing processes may influence the given values.
