Handle shell
GN 7330-155-A-1-SW black struckturmattZD - Zinc die casting
Item-no.: 1394315Supplier number: 7330-155-A-1-SWcustoms tariff number: 79070000EAN: 4045525433670
Quantity:
1 PiecePackable
Item available in 16 variants:
Price and stock visible after login
Description

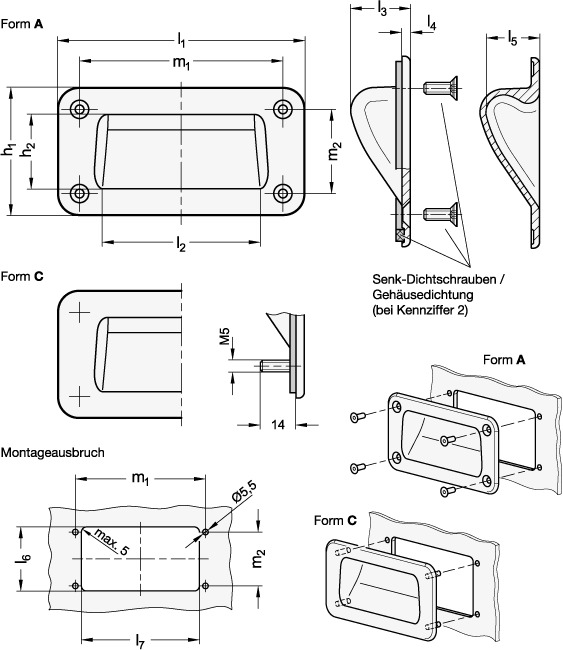

Gripping trays GN 7330 can be easily and quickly installed from the front using countersunk screws or from the back with grub screws. Gripping trays with housing seal (identification no. 2) prevent the penetration of any dirt or liquids into the housing interior. Type A is supplied with four additional countersunk sealing screws, which feature a polyamide coating on the head to create a tight seal.
Attributes
Code number
1 - without seal
Form
A - Installation from the operating side (for code number 2 with four countersunk sealing screws)
Length L3
25
Length L4
3.5
Length h1
80
Length h2
43
Length l1
155
Length l2
99
Length l5
22.5
Length l6
60
Length l7
115
Length m1
128
Length m2
53
Material
ZD - Zinc die casting
RoHS
Ja
Surface
SW - black, RAL 9005, textured matt
Weight
0.289 kg
