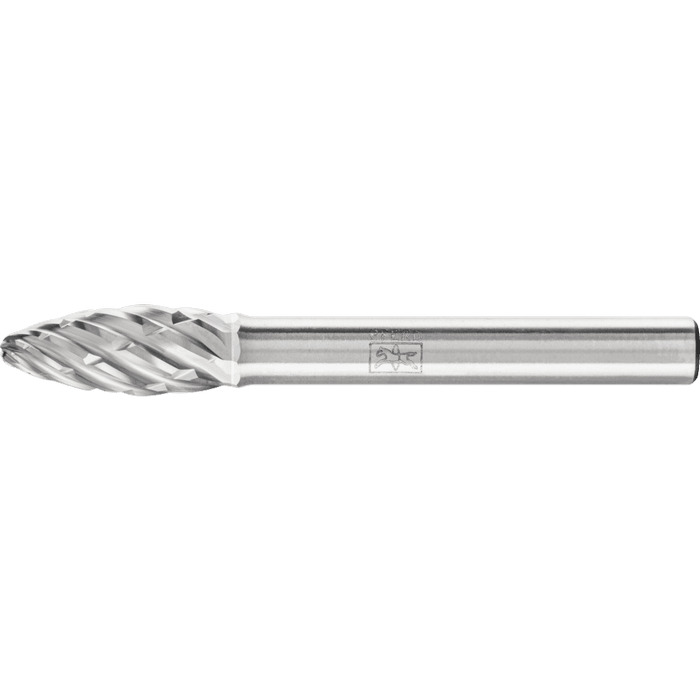

Carbide burr B 0820/6 STEEL
Ø 8 mm x L 20 mm Shank Ø 6 mm Flame shape, horseItem-no.: 1230542Supplier number: 21103187customs tariff number: 82077010EAN: 4007220936719
Quantity:
1 PiecePackable
Price and stock visible after login
Description
With the innovative STEEL cut, PFERD has developed unique burrs for working with steel and cast steel. They feature tangibly increased aggressiveness and good guidance. They thus ensure safe and precise work. Thanks to their extremely high stock removal rate, burrs with the STEEL cut help users save considerable time when working, thus making them an economically efficient option. Flame-shaped burr according to ISO 7755/8.
Attributes
Corner design radius
1.5 mm
Length, toothed
20 mm
Length, total
60 mm
RPM from, hardened and tempered steels over 1,200 N/mm²
18000 RPM
RPM from, steels up to 1,200 N/mm²
18000 RPM
RPM up to, hardened and tempered steels over 1,200 N/mm²
30000 RPM
RPM up to, steels up to 1,200 N/mm²
30000 RPM
Series
byly_HM_B_21103
Toothing
STEEL
Ø External metric
8 mm
Ø Shaft metric
6 mm
