Pferd

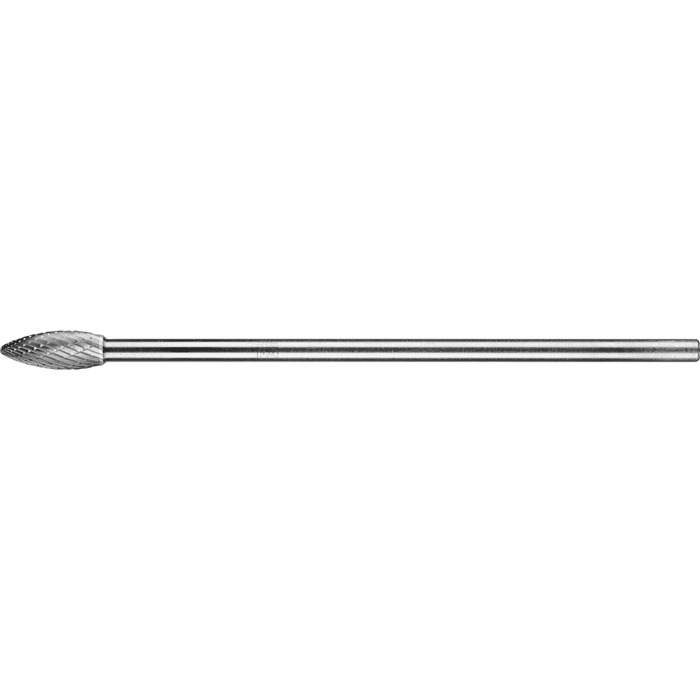

Carbide burr B 1025/6 Z3 PLUS SL150

Ø 10 mm x L 25 mm Shank Ø 6 mm Flame shape, horse
Item-no.: 1355838Supplier number: 21103287customs tariff number: 82077010EAN: 4007220090480

Quantity: ​​ 1 PiecePackable

Short-term Sourcing

Description
Cut 3 PLUS is cross cut and especially well-suited to machining of cast iron, steel, stainless steel (INOX), nickel-based alloys and titanium alloys. It is characterized by its high stock removal rate. Tungsten carbide burrs for general applications are suitable for fine and coarse stock removal on the key materials used in industrial manufacturing. They provide a good stock removal rate and are not specific to a particular material. Flame-shaped burr according to ISO 7755/8 with cut conforming to DIN 8033. Tungsten carbide burrs with a long shank are ideal for efficiently machining small, hard-to-reach areas of components. They can be shortened if required. This version has a long steel shank.
Attributes
Corner design radius
1.7 mm
Length, toothed
25 mm
Length, total
175 mm
RPM bis, gehärtete vergütete Stähle über 1.200 N/mm²
9000 RPM
RPM bis, rost- und säurebeständige Stähle
9000 RPM
RPM up to, grey cast iron, white cast iron
9000 RPM
RPM up to, soft non-ferrous metals
9000 RPM
RPM up to, steels up to 1,200 N/mm²
9000 RPM
Toothing
3 PLUS
Ø External metric
10 mm
Ø Shaft metric
6 mm
