Pferd

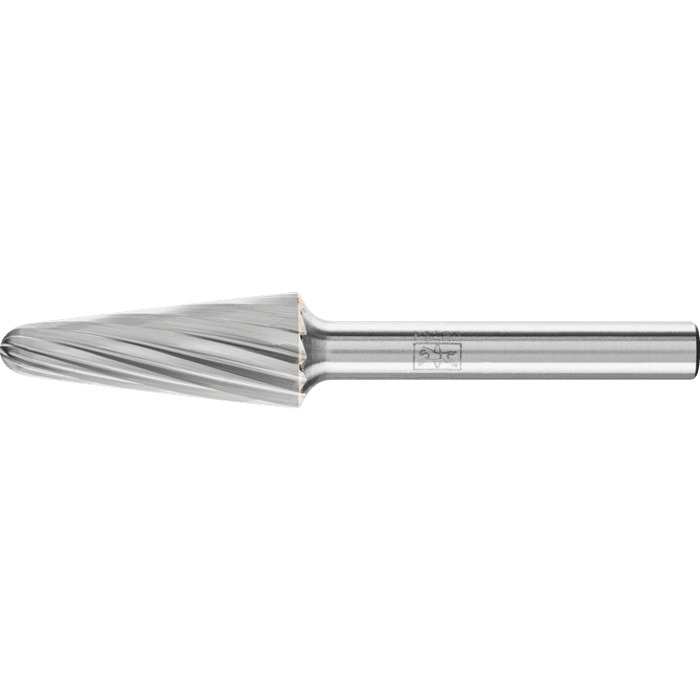

Carbide burr KEL 1230/6 Z1

Ø 12 mm x L 30 mm Shank Ø 6 mm Round cone shape, horse
Item-no.: 1229302Supplier number: 21125216EAN: 4007220048627

Quantity: ​​ 1 PiecePackable
Short-term Sourcing

Description
Cut 1 is especially well-suited to machining of non-ferrous metals, steel and cast iron. It is characterized by its high stock removal rate. Tungsten carbide burrs for general applications are suitable for fine and coarse stock removal on the key materials used in industrial manufacturing. They provide a good stock removal rate and are not specific to a particular material. Conical burr with round radius end according to DIN 8032 with cut conforming to DIN 8033.
Attributes
Angle
14 °
Corner design radius
2.6 mm
Length, toothed
30 mm
Length, total
70 mm
RPM from, grey cast iron, white cast iron
16000 RPM
RPM from, stainless and acid-resistant steels
7000 RPM
RPM from, steels up to 1,200 N/mm²
16000 RPM
RPM of, soft non-ferrous metals
16000 RPM
RPM up to, grey cast iron, white cast iron
24000 RPM
RPM up to, soft non-ferrous metals
24000 RPM
RPM up to, stainless and acid-resistant steels
12000 RPM
RPM up to, steels up to 1,200 N/mm²
24000 RPM
Series
byly_HM_KEL_2112
Toothing
1
Ø External metric
12 mm
Ø Shaft metric
6 mm
