Description

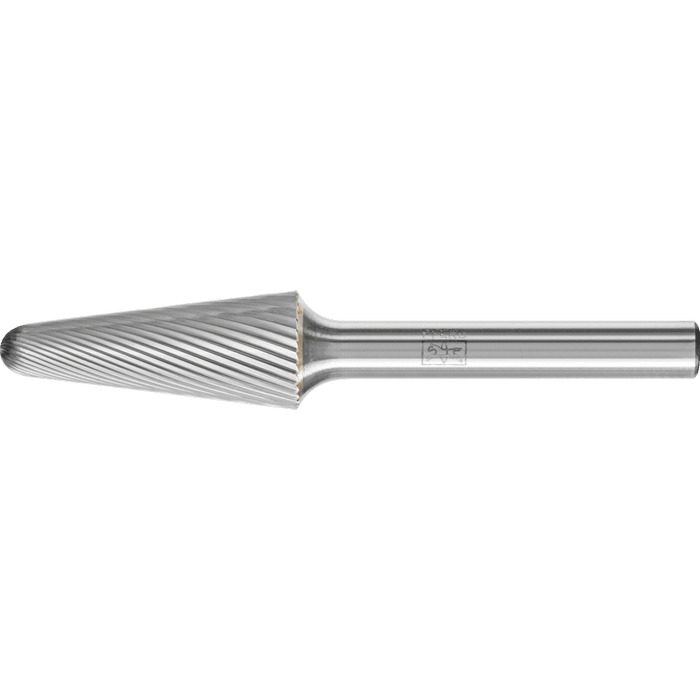

Cut 5 is especially well-suited to fine machining of cast iron, steel, stainless steel (INOX) and high-temperature-resistant materials such as nickel-based and cobalt-based alloys. It achieves a good surface. Tungsten carbide burrs for general applications are suitable for fine and coarse stock removal on the key materials used in industrial manufacturing. They provide a good stock removal rate and are not specific to a particular material. Conical burr with round radius end according to DIN 8032 with cut conforming to DIN 8033.
Attributes
Angle
14 °
Corner design radius
2.6 mm
Length, toothed
30 mm
Length, total
70 mm
RPM from, hardened and tempered steels over 1,200 N/mm²
9000 RPM
RPM from, high-temperature resistant materials
9000 RPM
RPM from, stainless and acid-resistant steels
9000 RPM
RPM from, steels up to 1,200 N/mm²
12000 RPM
RPM of, hard non-ferrous metals
9000 RPM
RPM up to, hard non-ferrous metals
12000 RPM
RPM up to, hardened and tempered steels over 1,200 N/mm²
12000 RPM
RPM up to, high-temperature resistant materials
16000 RPM
RPM up to, stainless and acid-resistant steels
12000 RPM
RPM up to, steels up to 1,200 N/mm²
16000 RPM
Series
byly_HM_KEL_2112
Toothing
5
Ø External metric
12 mm
Ø Shaft metric
6 mm
