Pferd

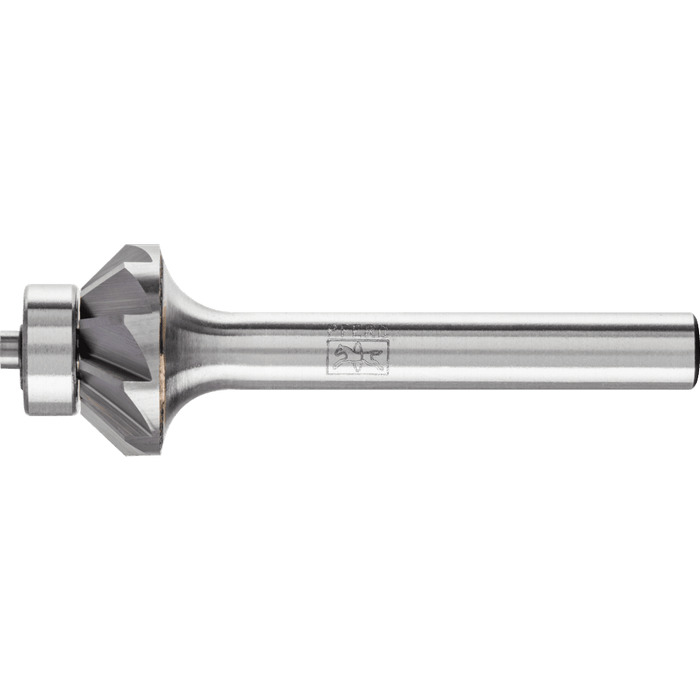

Carbide burr KSK 1603/6 EDGE 45°

Ø 16 mm x L 3 mm Shank Ø 6 mm Double conical mould, horse
Item-no.: 1166132Supplier number: 21115466customs tariff number: 82077010EAN: 4007220952436

Quantity: ​​ 1 PiecePackable
Short-term Sourcing

Description

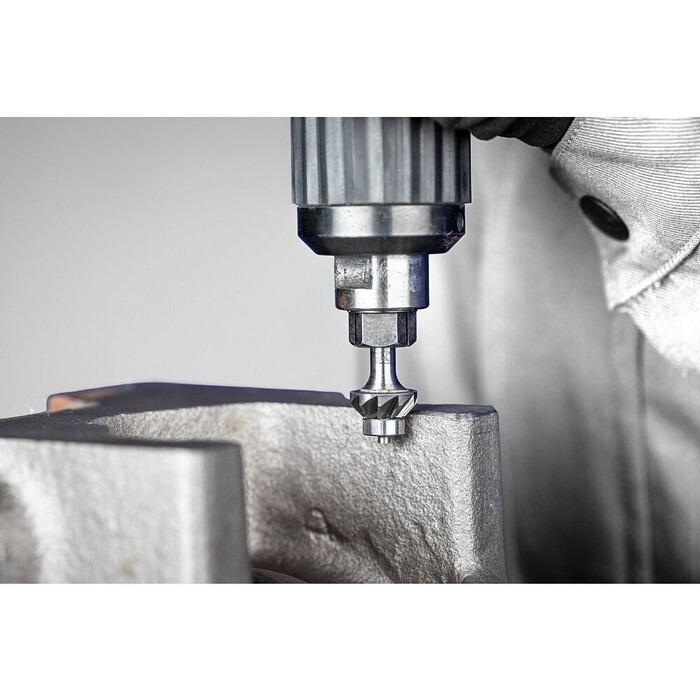

Tungsten carbide burrs with the EDGE cut have been especially developed for defined work on edges. The special design allows the burr to run directly along the edges without damaging the workpiece. In just one step, it is possible to achieve precise edge shapes. Among other things, rounding edges is a precautionary measure for anti-corrosion protection according to: ISO 129443, ISO 85013, SOLAS XII/6.3 (Ref. T4/3.01 MSC.1/Circ.1198). Conical counterbore burr for the production of precisely defined chamfers. Suitable for counterboring and chamfering of defined 45° chamfer angles.
Attributes
Angle
90 °
Length, body
12 mm
Length, toothed
3 mm
Length, total
52 mm
RPM from, grey cast iron, white cast iron
12000 RPM
RPM from, hardened and tempered steels over 1,200 N/mm²
12000 RPM
RPM from, high-temperature resistant materials
5000 RPM
RPM from, steels up to 1,200 N/mm²
12000 RPM
RPM of, hard non-ferrous metals
5000 RPM
RPM of, soft non-ferrous metals
12000 RPM
RPM up to, grey cast iron, white cast iron
18000 RPM
RPM up to, hard non-ferrous metals
7000 RPM
RPM up to, hardened and tempered steels over 1,200 N/mm²
15000 RPM
RPM up to, high-temperature resistant materials
9000 RPM
RPM up to, soft non-ferrous metals
18000 RPM
RPM up to, steels up to 1,200 N/mm²
18000 RPM
Series
byly_HM_KSK_2111
Toothing
EDGE
Ø Ball bearing
10 mm
Ø External metric
16 mm
Ø Shaft metric
6 mm
