Description

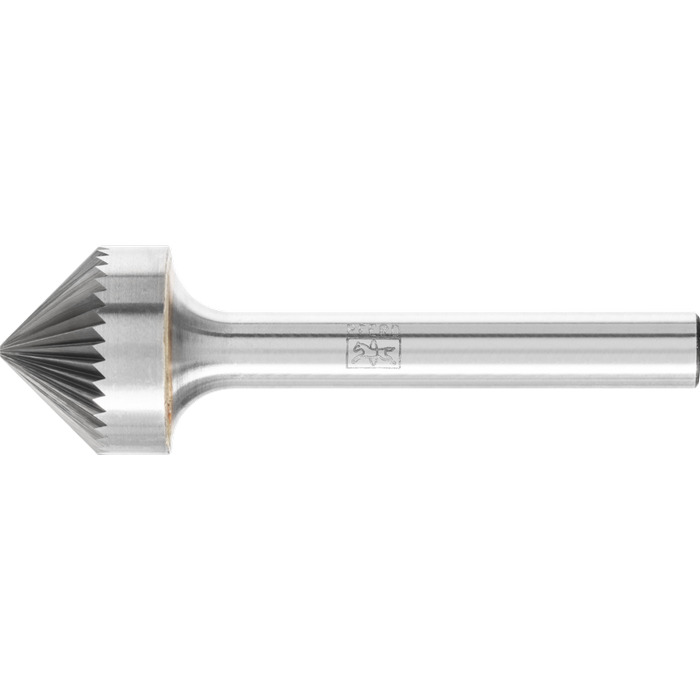

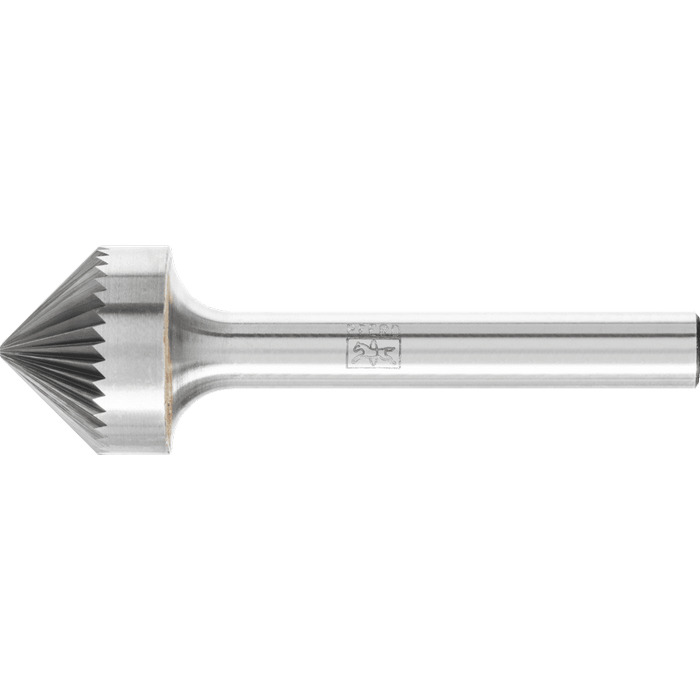

Cut 5 is especially well-suited to fine machining of cast iron, steel, stainless steel (INOX) and high-temperature-resistant materials such as nickel-based and cobalt-based alloys. It achieves a good surface. Tungsten carbide burrs for general applications are suitable for fine and coarse stock removal on the key materials used in industrial manufacturing. They provide a good stock removal rate and are not specific to a particular material. Conical counterbore burr according to DIN 8032 with cut conforming to DIN 8033, with angle (90°). Suitable for flexible counterboring and chamfering. Due to their special shapes, tungsten carbide burrs for flexible work on edges achieve almost precise chamfers or radii and can also be used flexibly in hard-to-reach areas. They are mainly used in steel and aluminium construction and have been specifically designed for chamfering, deburring and rounding of edges.
Attributes
Angle
90 °
Length, toothed
8 mm
Length, total
53 mm
RPM from, hardened and tempered steels over 1,200 N/mm²
7000 RPM
RPM from, high-temperature resistant materials
7000 RPM
RPM from, stainless and acid-resistant steels
7000 RPM
RPM from, steels up to 1,200 N/mm²
9000 RPM
RPM of, hard non-ferrous metals
7000 RPM
RPM up to, hard non-ferrous metals
9000 RPM
RPM up to, hardened and tempered steels over 1,200 N/mm²
9000 RPM
RPM up to, high-temperature resistant materials
12000 RPM
RPM up to, stainless and acid-resistant steels
9000 RPM
RPM up to, steels up to 1,200 N/mm²
12000 RPM
Series
byly_HM_KSK_2111
Toothing
5
Ø External metric
16 mm
Ø Shaft metric
6 mm
