Description

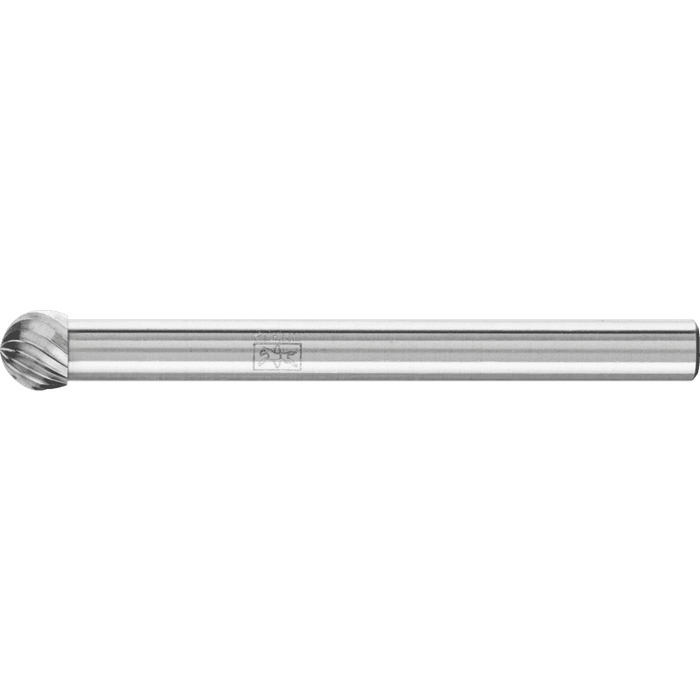

Cut 5 is especially well-suited to fine machining of cast iron, steel, stainless steel (INOX) and high-temperature-resistant materials such as nickel-based and cobalt-based alloys. It achieves a good surface. Tungsten carbide burrs for general applications are suitable for fine and coarse stock removal on the key materials used in industrial manufacturing. They provide a good stock removal rate and are not specific to a particular material. Ball-shaped burr according to DIN 8032 with cut conforming to DIN 8033. Due to their special shapes, tungsten carbide burrs for flexible work on edges achieve almost precise chamfers or radii and can also be used flexibly in hard-to-reach areas. They are mainly used in steel and aluminium construction and have been specifically designed for chamfering, deburring and rounding of edges.
Attributes
Length, toothed
3 mm
Length, total
34 mm
RPM from, hardened and tempered steels over 1,200 N/mm²
28000 RPM
RPM from, high-temperature resistant materials
28000 RPM
RPM from, stainless and acid-resistant steels
28000 RPM
RPM from, steels up to 1,200 N/mm²
36000 RPM
RPM of, hard non-ferrous metals
28000 RPM
RPM up to, hard non-ferrous metals
36000 RPM
RPM up to, hardened and tempered steels over 1,200 N/mm²
36000 RPM
RPM up to, high-temperature resistant materials
48000 RPM
RPM up to, stainless and acid-resistant steels
36000 RPM
RPM up to, steels up to 1,200 N/mm²
48000 RPM
Series
byly_HM_KUD_2121
Toothing
5
Ø External metric
4 mm
Ø Shaft metric
3 mm
