Description

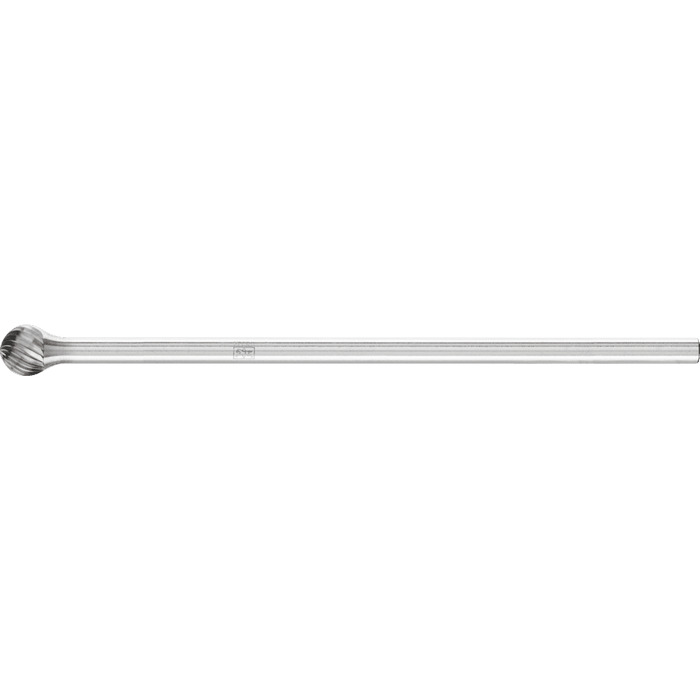

Cut 5 is especially well-suited to fine machining of cast iron, steel, stainless steel (INOX) and high-temperature-resistant materials such as nickel-based and cobalt-based alloys. It achieves a good surface. Tungsten carbide burrs for general applications are suitable for fine and coarse stock removal on the key materials used in industrial manufacturing. They provide a good stock removal rate and are not specific to a particular material. Ball-shaped burr according to DIN 8032 with cut conforming to DIN 8033. Due to their special shapes, tungsten carbide burrs for flexible work on edges achieve almost precise chamfers or radii and can also be used flexibly in hard-to-reach areas. They are mainly used in steel and aluminium construction and have been specifically designed for chamfering, deburring and rounding of edges. Tungsten carbide burrs with a long shank are ideal for efficiently machining small, hard-to-reach areas of components. They can be shortened if required. This version has a long steel shank.
Attributes
Length, toothed
5 mm
Length, total
80 mm
RPM up to, hard non-ferrous metals
15000 RPM
RPM up to, hardened and tempered steels over 1,200 N/mm²
15000 RPM
RPM up to, high-temperature resistant materials
15000 RPM
RPM up to, stainless and acid-resistant steels
15000 RPM
RPM up to, steels up to 1,200 N/mm²
15000 RPM
Series
byly_HM_KUD_2121
Toothing
5
Ø External metric
6 mm
Ø Shaft metric
3 mm
