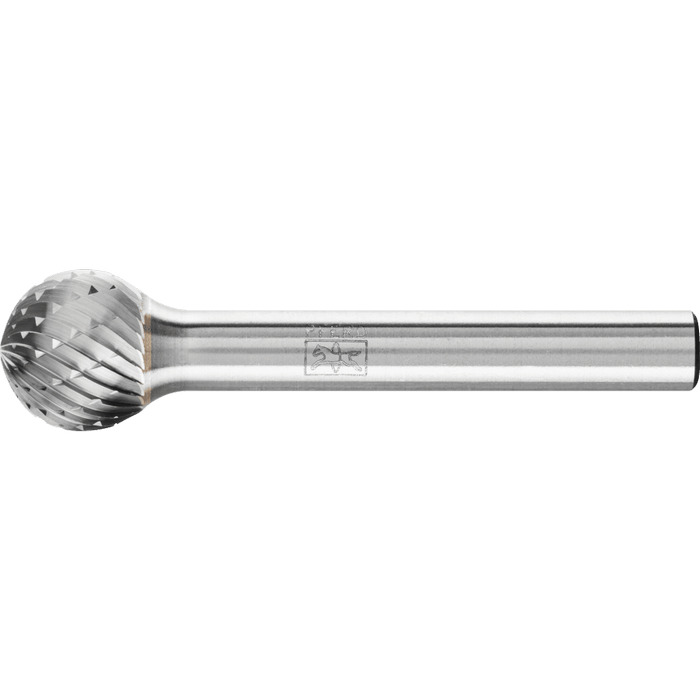

Carbide burr KUD 1210/6 Z3 PLUS
Ø 12 mm x L 10 mm Shank Ø 6 mm Spherical shape, horseItem-no.: 1229225Supplier number: 21112826customs tariff number: 82077010EAN: 4007220047033
Quantity:
1 PiecePackable
Price and stock visible after login
Description

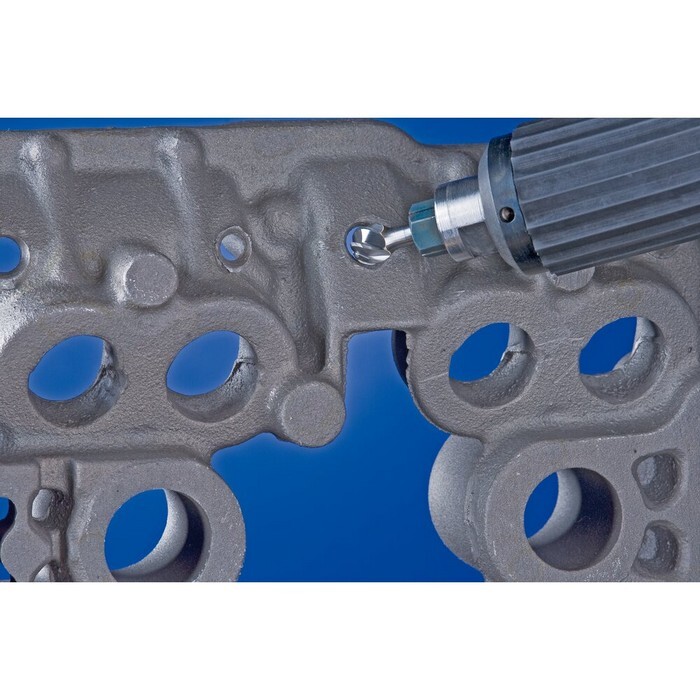

Cut 3 PLUS is cross cut and especially well-suited to machining of cast iron, steel, stainless steel (INOX), nickel-based alloys and titanium alloys. It is characterized by its high stock removal rate. Tungsten carbide burrs for general applications are suitable for fine and coarse stock removal on the key materials used in industrial manufacturing. They provide a good stock removal rate and are not specific to a particular material. Ball-shaped burr according to DIN 8032 with cut conforming to DIN 8033.
Attributes
Cutting material
Carbide
Form
KUD
Head length
10 mm
Length, toothed
10 mm
Length, total
51 mm
RPM from, grey cast iron, white cast iron
12000 RPM
RPM from, hardened and tempered steels over 1,200 N/mm²
7000 RPM
RPM from, high-temperature resistant materials
7000 RPM
RPM from, stainless and acid-resistant steels
7000 RPM
RPM from, steels up to 1,200 N/mm²
12000 RPM
RPM up to, grey cast iron, white cast iron
16000 RPM
RPM up to, hardened and tempered steels over 1,200 N/mm²
9000 RPM
RPM up to, high-temperature resistant materials
12000 RPM
RPM up to, stainless and acid-resistant steels
8000 RPM
RPM up to, steels up to 1,200 N/mm²
16000 RPM
Series
byly_HM_KUD_2111
Shaft-Ø
6 mm
Toothing
3 PLUS
Toothing
3 PLUS
Total length
50 mm
Ø
12 mm
Ø External metric
12 mm
Ø Shaft metric
6 mm
