Description

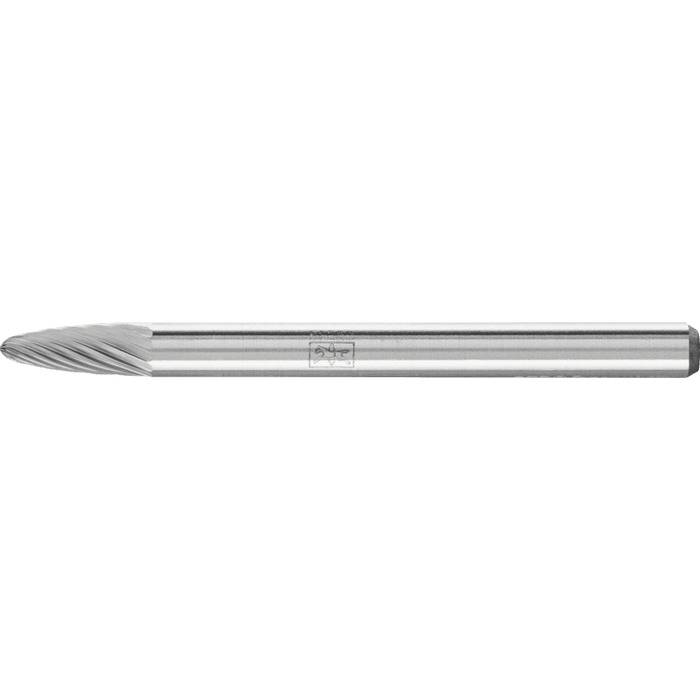

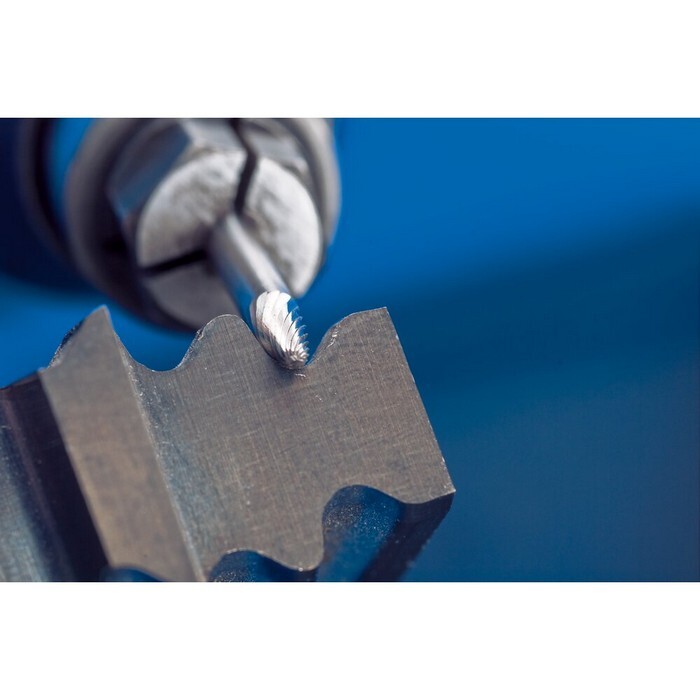

Cut 5 is especially well-suited to fine machining of cast iron, steel, stainless steel (INOX) and high-temperature-resistant materials such as nickel-based and cobalt-based alloys. It achieves a good surface. Tungsten carbide burrs for general applications are suitable for fine and coarse stock removal on the key materials used in industrial manufacturing. They provide a good stock removal rate and are not specific to a particular material. Tree-shaped burr with radius end according to DIN 8032 with cut conforming to DIN 8033.
Attributes
Corner design radius
0.75 mm
Length, toothed
7 mm
Length, total
37 mm
RPM from, hardened and tempered steels over 1,200 N/mm²
37000 RPM
RPM from, high-temperature resistant materials
37000 RPM
RPM from, stainless and acid-resistant steels
37000 RPM
RPM from, steels up to 1,200 N/mm²
48000 RPM
RPM of, hard non-ferrous metals
37000 RPM
RPM up to, hard non-ferrous metals
48000 RPM
RPM up to, hardened and tempered steels over 1,200 N/mm²
48000 RPM
RPM up to, high-temperature resistant materials
64000 RPM
RPM up to, stainless and acid-resistant steels
48000 RPM
RPM up to, steels up to 1,200 N/mm²
64000 RPM
Series
byly_HM_RBF_21
Toothing
5
Ø External metric
3 mm
Ø Shaft metric
3 mm
