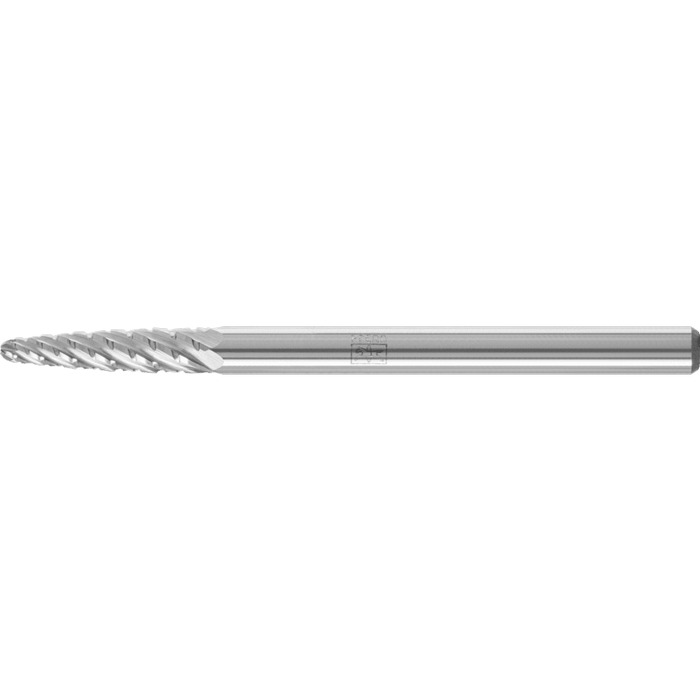

Carbide burr RBF 0313/3 TITANIUM
Ø 3 mm x L 7 mm Shank Ø 3 mm Round arch shape, horseItem-no.: 1311786Supplier number: 21218184customs tariff number: 82077010EAN: 4007220034354
Quantity:
1 PiecePackable
Price and stock visible after login
Description
The TITANIUM cut has been especially developed for work on hard titanium materials (tensile strength > 500 N/mm²). It is characterized by an extremely high stock removal rate on this material group, which has very challenging stock removal properties. Tungsten carbide burrs with the TITANIUM cut impress with their smooth milling with considerably reduced vibration and less noise. Tree-shaped burr with radius end according to DIN 8032.
Attributes
Corner design radius
0.75 mm
Length, toothed
13 mm
Length, total
43 mm
RPM of, hard non-ferrous metals
27000 RPM
RPM up to, hard non-ferrous metals
48000 RPM
Series
byly_HM_RBF_TITANIUM_2111
Toothing
TITANIUM
Ø External metric
3 mm
Ø Shaft metric
3 mm
