Description

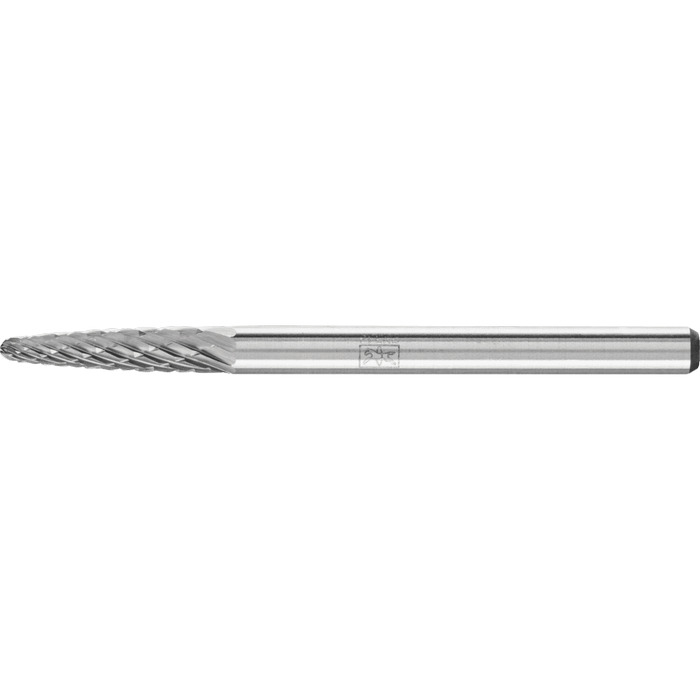

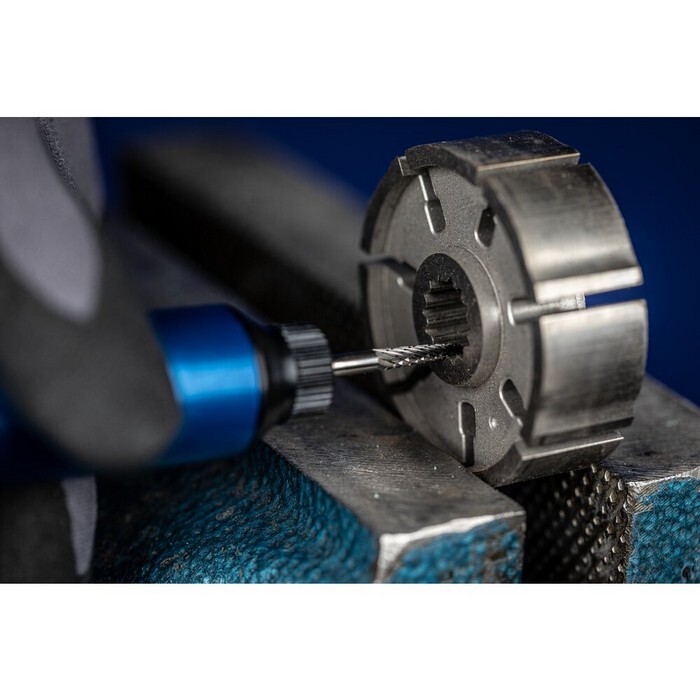

Cut 3 PLUS is cross cut and especially well-suited to machining of cast iron, steel, stainless steel (INOX), nickel-based alloys and titanium alloys. It is characterized by its high stock removal rate. Tungsten carbide burrs for general applications are suitable for fine and coarse stock removal on the key materials used in industrial manufacturing. They provide a good stock removal rate and are not specific to a particular material. Tree-shaped burr with radius end according to DIN 8032 with cut conforming to DIN 8033.
Attributes
Corner design radius
0.75 mm
Length, toothed
13 mm
Length, total
43 mm
RPM from, grey cast iron, white cast iron
48000 RPM
RPM from, hardened and tempered steels over 1,200 N/mm²
27000 RPM
RPM from, stainless and acid-resistant steels
27000 RPM
RPM of, hard non-ferrous metals
27000 RPM
RPM of, soft non-ferrous metals
48000 RPM
RPM up to, grey cast iron, white cast iron
64000 RPM
RPM up to, hard non-ferrous metals
37000 RPM
RPM up to, hardened and tempered steels over 1,200 N/mm²
37000 RPM
RPM up to, soft non-ferrous metals
64000 RPM
RPM up to, stainless and acid-resistant steels
37000 RPM
Series
byly_HM_RBF_21
Toothing
3 PLUS
Ø External metric
3 mm
Ø Shaft metric
3 mm
