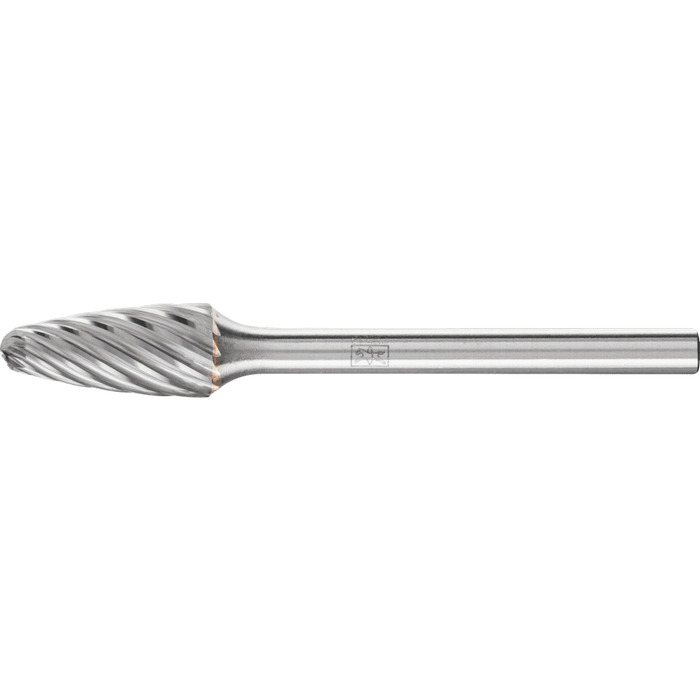

Carbide burr RBF 0613/3 INOX
Ø 6 mm x L 13 mm Shank Ø 3 mm Round arch shape, horseItem-no.: 1230709Supplier number: 21230082customs tariff number: 82077010EAN: 4007220930489
Quantity:
1 PiecePackable
Price and stock visible after login
Description

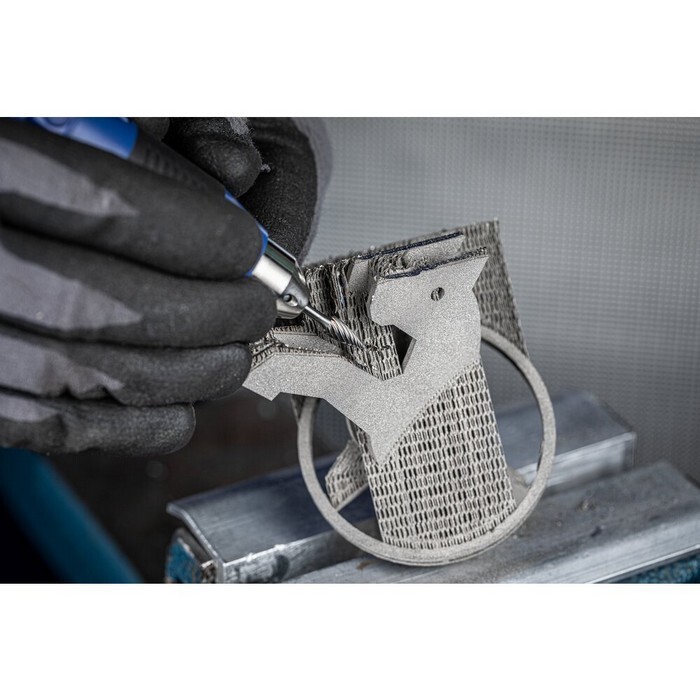

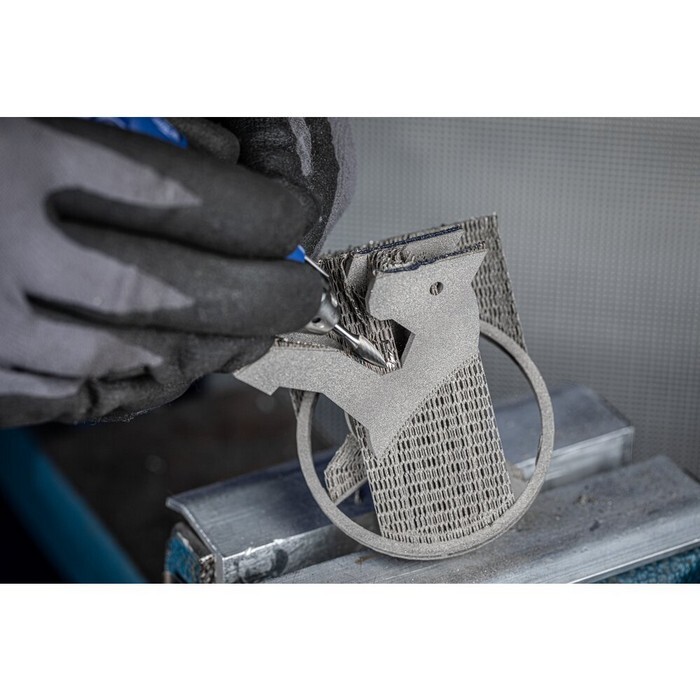

With the INOX cut, PFERD has developed innovative burrs for work on stainless steel (INOX). The INOX cut is characterized by an extremely high stock removal rate on all austenitic steels, as well as rust- and acid-resistant steels. It generates significantly less vibration than a comparable cross cut. Tree-shaped burr with radius end according to DIN 8032.
Attributes
Corner design radius
1.5 mm
Length, toothed
13 mm
Length, total
43 mm
RPM from, stainless and acid-resistant steels
24000 RPM
RPM of, hard non-ferrous metals
13000 RPM
RPM of, soft non-ferrous metals
13000 RPM
RPM up to, hard non-ferrous metals
24000 RPM
RPM up to, soft non-ferrous metals
24000 RPM
RPM up to, stainless and acid-resistant steels
32000 RPM
Series
byly_HM_RBF_212
Toothing
INOX
Ø External metric
6 mm
Ø Shaft metric
3 mm
