Description

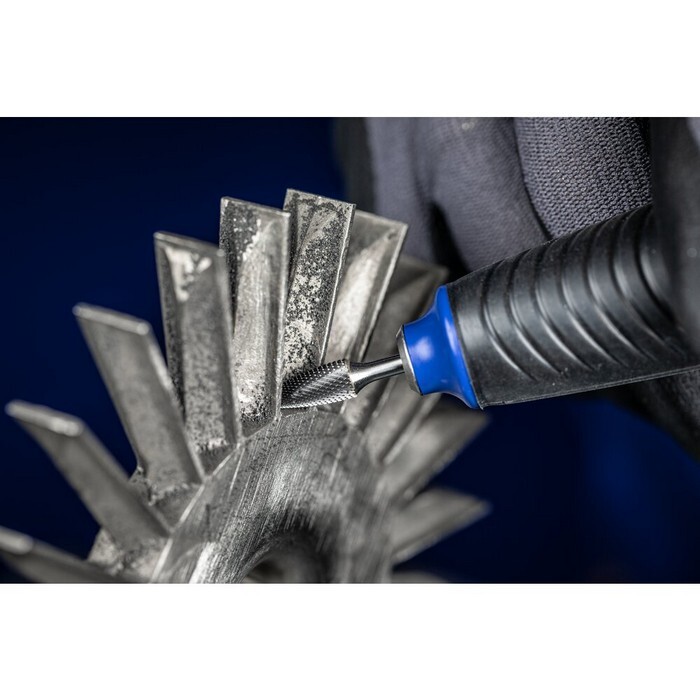

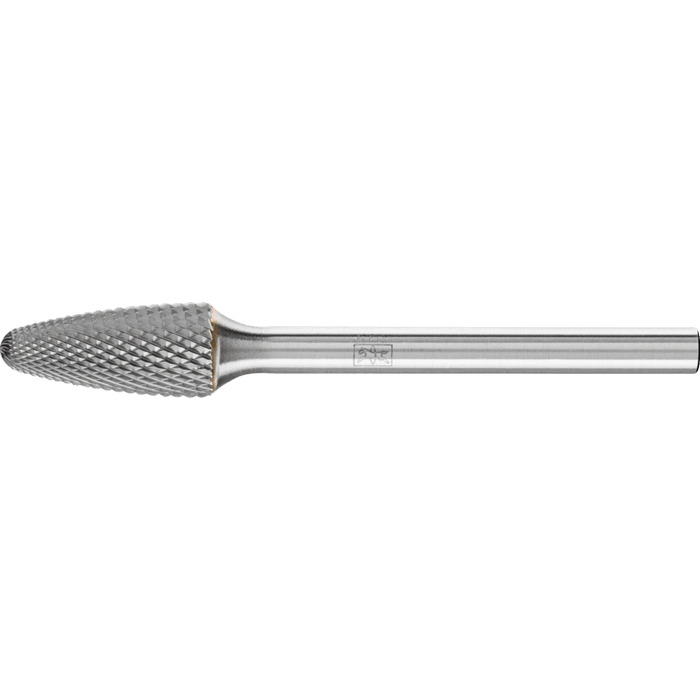

Tungsten carbide burrs with the MICRO cut are specifically designed for finishing and are used in areas in which mounted grinding points are used for example. They offer a higher stock removal rate and produce a high surface quality, particularly compared with conventionally milled surfaces. They also operate with low vibration and little noise. They maintain their geometry over their entire tool life, and are well-suited to manual and machine applications. Almost all materials up to a hardness of 68 HRC can be machined. Tree-shaped burr with radius end according to DIN 8032.
Attributes
Corner design radius
1.5 mm
Length, toothed
13 mm
Length, total
43 mm
RPM from, grey cast iron, white cast iron
32000 RPM
RPM from, hardened and tempered steels over 1,200 N/mm²
24000 RPM
RPM from, high-temperature resistant materials
24000 RPM
RPM from, stainless and acid-resistant steels
24000 RPM
RPM from, steels up to 1,200 N/mm²
32000 RPM
RPM of, hard non-ferrous metals
24000 RPM
RPM up to, grey cast iron, white cast iron
40000 RPM
RPM up to, hard non-ferrous metals
32000 RPM
RPM up to, hardened and tempered steels over 1,200 N/mm²
32000 RPM
RPM up to, high-temperature resistant materials
32000 RPM
RPM up to, stainless and acid-resistant steels
32000 RPM
RPM up to, steels up to 1,200 N/mm²
40000 RPM
Series
byly_HM_RBF_MICRO_21
Toothing
MICRO
Ø External metric
6 mm
Ø Shaft metric
3 mm
