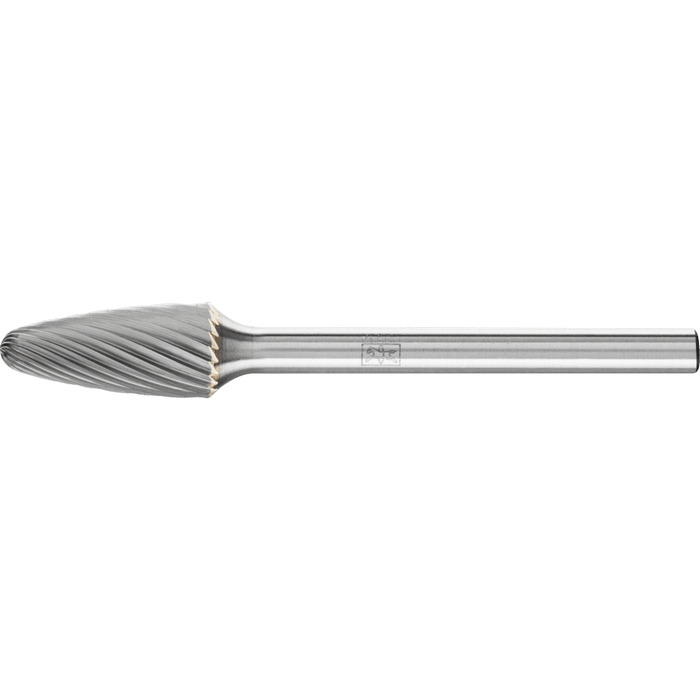

Carbide burr RBF 0613/3 Z5
Ø 6 mm x L 13 mm Shank Ø 3 mm Round arch shape, horseItem-no.: 1229381Supplier number: 21230053customs tariff number: 82077010EAN: 4007220049990
Quantity:
1 PiecePackable
Price and stock visible after login
Description
Cut 5 is especially well-suited to fine machining of cast iron, steel, stainless steel (INOX) and high-temperature-resistant materials such as nickel-based and cobalt-based alloys. It achieves a good surface. Tungsten carbide burrs for general applications are suitable for fine and coarse stock removal on the key materials used in industrial manufacturing. They provide a good stock removal rate and are not specific to a particular material. Tree-shaped burr with radius end according to DIN 8032 with cut conforming to DIN 8033.
Attributes
Corner design radius
1.5 mm
Length, toothed
13 mm
Length, total
43 mm
RPM from, hardened and tempered steels over 1,200 N/mm²
19000 RPM
RPM from, high-temperature resistant materials
19000 RPM
RPM from, stainless and acid-resistant steels
19000 RPM
RPM from, steels up to 1,200 N/mm²
24000 RPM
RPM of, hard non-ferrous metals
19000 RPM
RPM up to, hard non-ferrous metals
24000 RPM
RPM up to, hardened and tempered steels over 1,200 N/mm²
24000 RPM
RPM up to, high-temperature resistant materials
32000 RPM
RPM up to, stainless and acid-resistant steels
24000 RPM
RPM up to, steels up to 1,200 N/mm²
32000 RPM
Toothing
5
Ø External metric
6 mm
Ø Shaft metric
3 mm
