Description

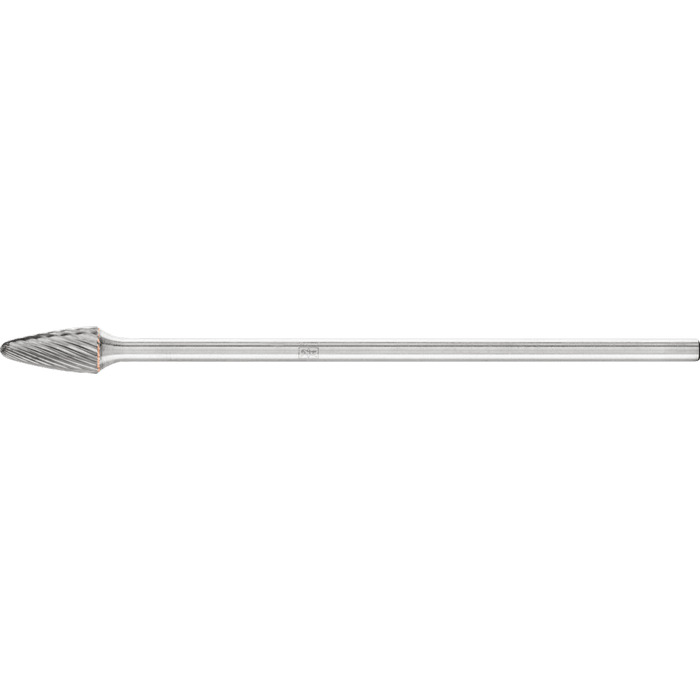

Cut 5 is especially well-suited to fine machining of cast iron, steel, stainless steel (INOX) and high-temperature-resistant materials such as nickel-based and cobalt-based alloys. It achieves a good surface. Tungsten carbide burrs for general applications are suitable for fine and coarse stock removal on the key materials used in industrial manufacturing. They provide a good stock removal rate and are not specific to a particular material. Tree-shaped burr with radius end according to DIN 8032 with cut conforming to DIN 8033. Tungsten carbide burrs with a long shank are ideal for efficiently machining small, hard-to-reach areas of components. They can be shortened if required. This version has a long steel shank.
Attributes
Corner design radius
1.5 mm
Length, toothed
13 mm
Length, total
88 mm
RPM up to, hard non-ferrous metals
15000 RPM
RPM up to, hardened and tempered steels over 1,200 N/mm²
15000 RPM
RPM up to, high-temperature resistant materials
15000 RPM
RPM up to, steels up to 1,200 N/mm²
15000 RPM
Series
byly_HM_RBF_21
Toothing
5
Ø External metric
6 mm
Ø Shaft metric
3 mm
