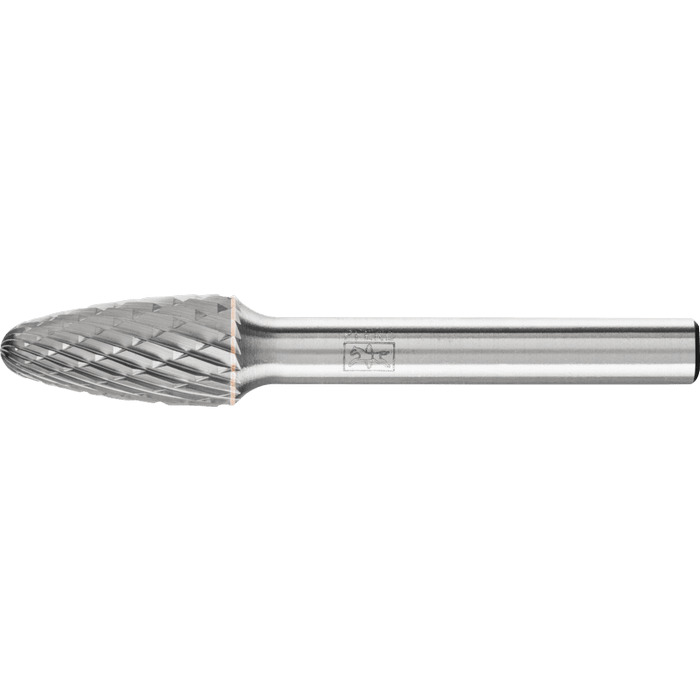

Carbide burr RBF 1020/6 Z3 PLUS
Ø 10 mm x L 20 mm Shank Ø 6 mm Round arch shape, horseItem-no.: 1017841Supplier number: 21117726customs tariff number: 82077010EAN: 4007220047705
Quantity:
1 PiecePackable
Price and stock visible after login
Description
Cut 3 PLUS is cross cut and especially well-suited to machining of cast iron, steel, stainless steel (INOX), nickel-based alloys and titanium alloys. It is characterized by its high stock removal rate. Tungsten carbide burrs for general applications are suitable for fine and coarse stock removal on the key materials used in industrial manufacturing. They provide a good stock removal rate and are not specific to a particular material. Tree-shaped burr with radius end according to DIN 8032 with cut conforming to DIN 8033.
Attributes
Corner design radius
2.5 mm
Cutting material
Carbide
Form
RBF
Head length
20 mm
Length, toothed
20 mm
Length, total
60 mm
RPM from, grey cast iron, white cast iron
14000 RPM
RPM from, hardened and tempered steels over 1,200 N/mm²
8000 RPM
RPM from, high-temperature resistant materials
8000 RPM
RPM from, stainless and acid-resistant steels
8000 RPM
RPM from, steels up to 1,200 N/mm²
14000 RPM
RPM up to, grey cast iron, white cast iron
19000 RPM
RPM up to, hardened and tempered steels over 1,200 N/mm²
11000 RPM
RPM up to, high-temperature resistant materials
14000 RPM
RPM up to, stainless and acid-resistant steels
11000 RPM
RPM up to, steels up to 1,200 N/mm²
19000 RPM
Series
byly_HM_RBF_21
Shaft-Ø
6 mm
Toothing
3 PLUS
Toothing
3 PLUS
Total length
60 mm
Ø
10 mm
Ø External metric
10 mm
Ø Shaft metric
6 mm
