Description

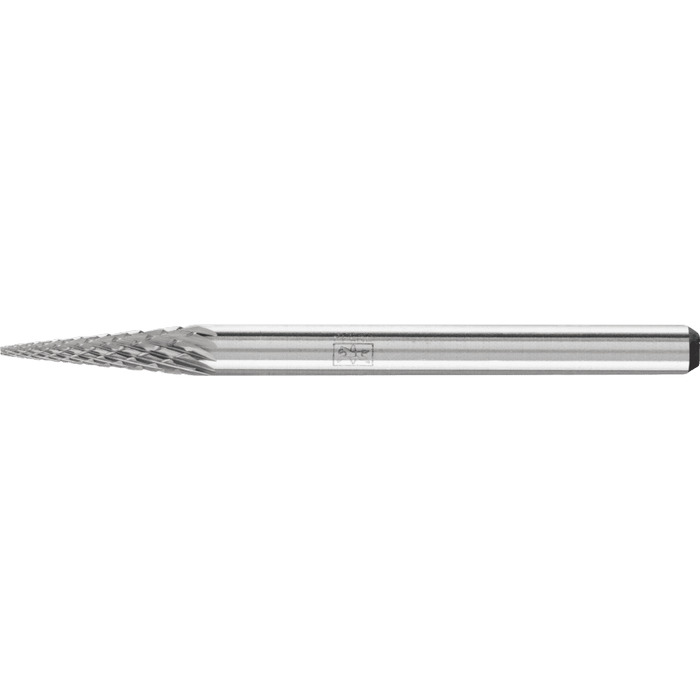

Cut 4 is especially well-suited to machining of stainless steel (INOX), steel and high-temperature-resistant materials such as nickel-based and cobalt-based alloys. It is characterized by its high stock removal rate with short chips and achieves a good surface. Tungsten carbide burrs for general applications are suitable for fine and coarse stock removal on the key materials used in industrial manufacturing. They provide a good stock removal rate and are not specific to a particular material. Conical pointed burr according to DIN 8032 with cut conforming to DIN 8033, flattened tip.
Attributes
Angle
14 °
Length, toothed
11 mm
Length, total
41 mm
RPM from, hardened and tempered steels over 1,200 N/mm²
27000 RPM
RPM from, high-temperature resistant materials
27000 RPM
RPM from, stainless and acid-resistant steels
27000 RPM
RPM of, hard non-ferrous metals
27000 RPM
RPM up to, hard non-ferrous metals
37000 RPM
RPM up to, hardened and tempered steels over 1,200 N/mm²
37000 RPM
RPM up to, high-temperature resistant materials
48000 RPM
RPM up to, stainless and acid-resistant steels
48000 RPM
Series
byly_HM_SKM_2121
Toothing
4
Ø External metric
3 mm
Ø Shaft metric
3 mm
