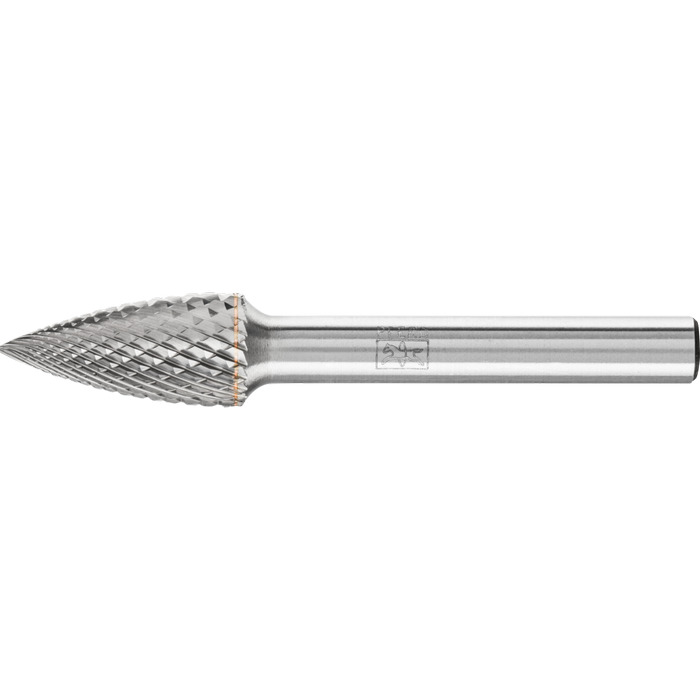

Carbide burr SPG 1020/6 Tough-S
Ø 10 mm x L 20 mm Shank Ø 6 mm Pointed arch shape, horseItem-no.: 1230504Supplier number: 21000096EAN: 4007220770269
Quantity:
1 PiecePackable
Price and stock visible after login
Description

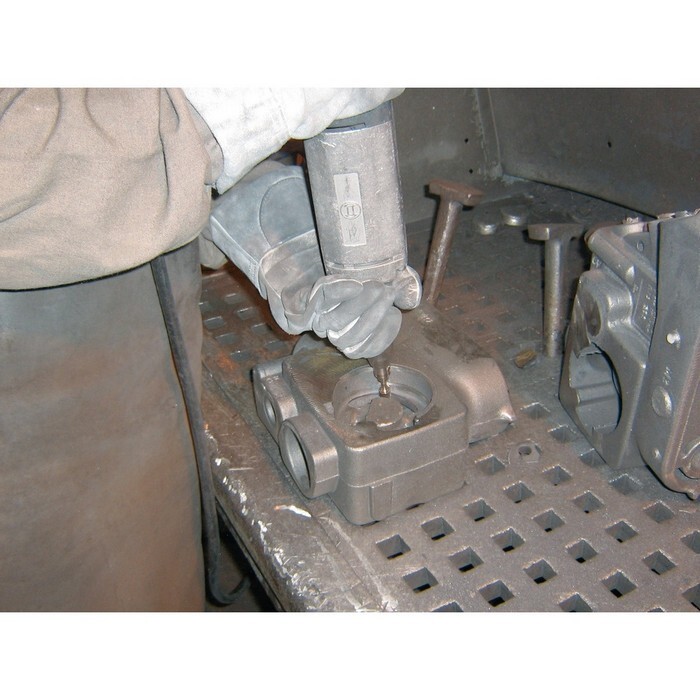

The TOUGH-S cut has been developed especially for tough applications in dockyards, foundries and steel construction. It is also ideal for use in all manufacturing sectors where, due to the difficult production environment, tooth breakages or other damage to conventional burrs is a frequent occurrence. Tungsten carbide burrs with the TOUGH-S cut are characterized by smooth milling and high stock removal. Pointed tree-shaped burr according to DIN 8032, flattened tip.
Attributes
Length, toothed
20 mm
Length, total
60 mm
RPM from, grey cast iron, white cast iron
8000 RPM
RPM from, hardened and tempered steels over 1,200 N/mm²
8000 RPM
RPM from, steels up to 1,200 N/mm²
8000 RPM
RPM up to, grey cast iron, white cast iron
20000 RPM
RPM up to, hardened and tempered steels over 1,200 N/mm²
11000 RPM
RPM up to, steels up to 1,200 N/mm²
19000 RPM
Series
byly_HM_SPG_TOUGH_2100
Toothing
TOUGH-S
Ø External metric
10 mm
Ø Shaft metric
6 mm
