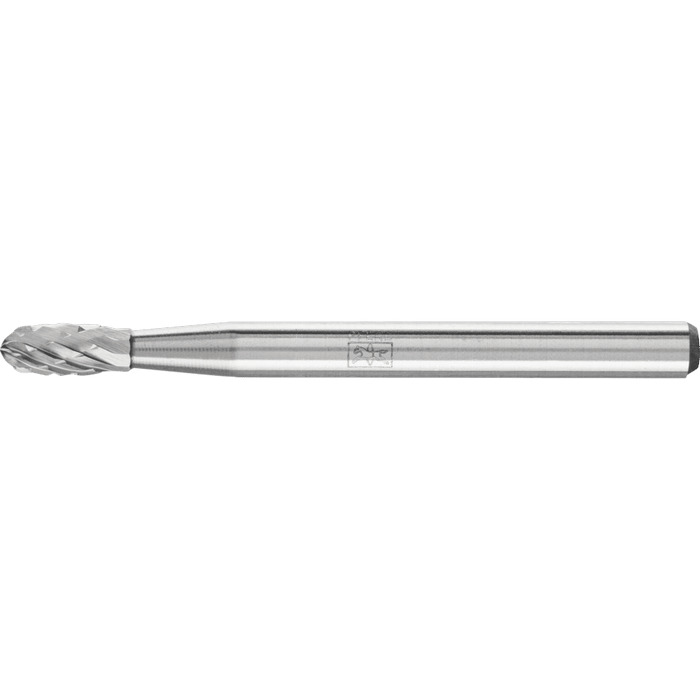

Carbide burr TRE 0307/3 Z3 PLUS
Ø 3 mm x L 7 mm Shank Ø 3 mm Drop shape, horseItem-no.: 1017856Supplier number: 21210083customs tariff number: 82077010EAN: 4007220049754
Quantity:
1 PiecePackable
Price and stock visible after login
Description

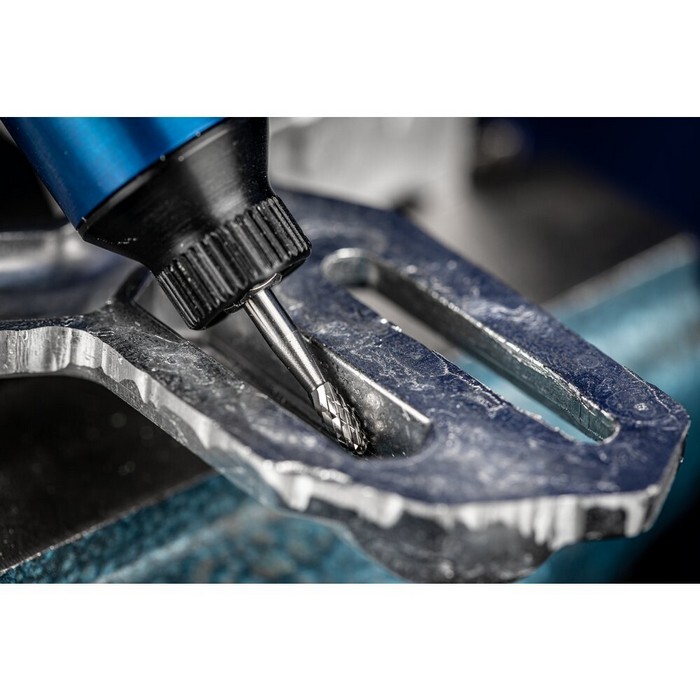

Cut 3 PLUS is cross cut and especially well-suited to machining of cast iron, steel, stainless steel (INOX), nickel-based alloys and titanium alloys. It is characterized by its high stock removal rate. Tungsten carbide burrs for general applications are suitable for fine and coarse stock removal on the key materials used in industrial manufacturing. They provide a good stock removal rate and are not specific to a particular material. Oval burr according to DIN 8032 with cut conforming to DIN 8033.
Attributes
Corner design radius
1.2 mm
Cutting material
Carbide
Form
TRE
Head length
7 mm
Length, toothed
7 mm
Length, total
37 mm
RPM bis, harte NE-Metalle
37000 RPM
RPM bis, weiche NE-Metalle
64000 RPM
RPM from, grey cast iron, white cast iron
48000 RPM
RPM from, hardened and tempered steels over 1,200 N/mm²
27000 RPM
RPM from, high-temperature resistant materials
27000 RPM
RPM from, stainless and acid-resistant steels
27000 RPM
RPM from, steels up to 1,200 N/mm²
48000 RPM
RPM up to, grey cast iron, white cast iron
64000 RPM
RPM up to, hardened and tempered steels over 1,200 N/mm²
37000 RPM
RPM up to, high-temperature resistant materials
48000 RPM
RPM up to, stainless and acid-resistant steels
37000 RPM
RPM up to, steels up to 1,200 N/mm²
64000 RPM
RPM von, harte NE-Metalle
27000 RPM
RPM von, weiche NE-Metalle
48000 RPM
Series
byly_HM_TRE_211
Shaft-Ø
3 mm
Toothing
3 PLUS
Toothing
3 PLUS
Ø
3 mm
Ø External metric
3 mm
Ø Shaft metric
3 mm
