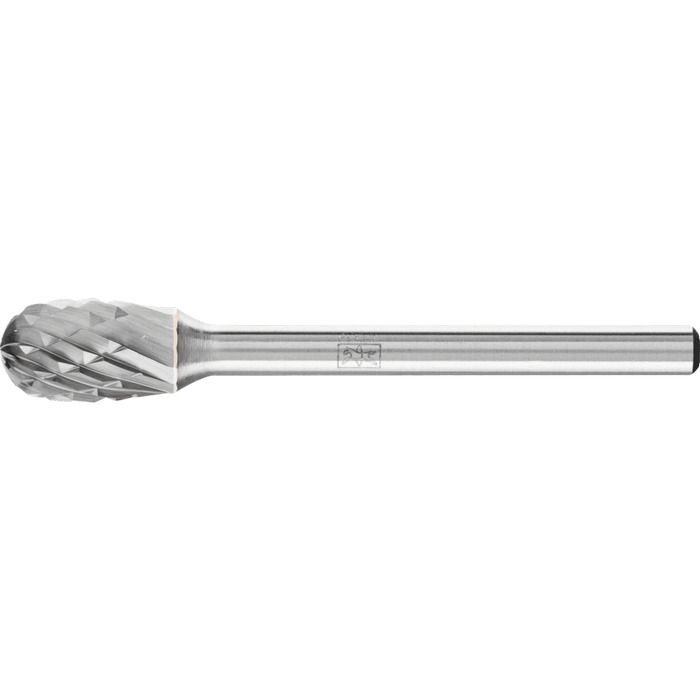

Carbide burr TRE 0610/3 Z3 PLUS
Ø 6 mm x L 10 mm Shank Ø 3 mm Drop shape, horseItem-no.: 1229384Supplier number: 21235083customs tariff number: 82077010EAN: 4007220050040
Quantity:
1 PiecePackable
Your price: Price on request
Price and stock visible after login
Description

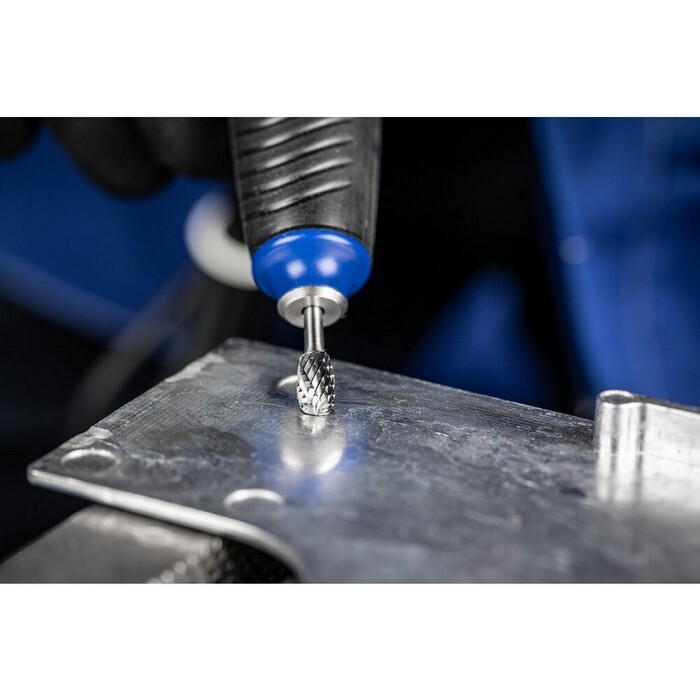

Cut 3 PLUS is cross cut and especially well-suited to machining of cast iron, steel, stainless steel (INOX), nickel-based alloys and titanium alloys. It is characterized by its high stock removal rate. Tungsten carbide burrs for general applications are suitable for fine and coarse stock removal on the key materials used in industrial manufacturing. They provide a good stock removal rate and are not specific to a particular material. Oval burr according to DIN 8032 with cut conforming to DIN 8033.
Attributes
Corner design radius
2.8 mm
Length, toothed
10 mm
Length, total
40 mm
RPM from, grey cast iron, white cast iron
24000 RPM
RPM from, hardened and tempered steels over 1,200 N/mm²
13000 RPM
RPM from, high-temperature resistant materials
13000 RPM
RPM from, stainless and acid-resistant steels
13000 RPM
RPM from, steels up to 1,200 N/mm²
24000 RPM
RPM up to, grey cast iron, white cast iron
32000 RPM
RPM up to, hardened and tempered steels over 1,200 N/mm²
19000 RPM
RPM up to, high-temperature resistant materials
24000 RPM
RPM up to, stainless and acid-resistant steels
19000 RPM
RPM up to, steels up to 1,200 N/mm²
32000 RPM
Series
byly_HM_TRE_211
Toothing
3 PLUS
Ø External metric
6 mm
Ø Shaft metric
3 mm
